Overview
The P87LPC767FD,512 is a microcontroller unit (MCU) manufactured by NXP USA Inc. This device is part of the 8051 family and is designed to offer enhanced processing capabilities and memory efficiency. The MCU features a CISC (Complex Instruction Set Computer) instruction set, which provides improved performance and code density. Although the product is no longer in active production, it remains relevant for existing designs and legacy systems.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, POR, WDT |
Key Features
- CISC Instruction Set: Enhances processing efficiency and code density.
- 8-Bit Core: Provides a balance between performance and power consumption.
- 20MHz Speed: Supports high-speed applications.
- I2C and UART/USART Connectivity: Enables communication with various peripherals and other devices.
- Brown-out Detect/Reset, LED, POR, WDT: Offers robust power management and system protection features.
Applications
The P87LPC767FD,512 MCU is suitable for a variety of applications, including:
- Industrial control systems
- Automotive systems
- Consumer electronics
- Medical devices
- Embedded systems requiring efficient processing and low power consumption
Q & A
- What is the core processor of the P87LPC767FD,512 MCU?
The core processor is the 8051. - What is the core size of the P87LPC767FD,512 MCU?
The core size is 8-Bit. - What is the maximum speed of the P87LPC767FD,512 MCU?
The maximum speed is 20MHz. - What types of connectivity does the P87LPC767FD,512 MCU support?
The MCU supports I2C and UART/USART connectivity. - What peripherals are included in the P87LPC767FD,512 MCU?
The peripherals include Brown-out Detect/Reset, LED, POR, and WDT. - Is the P87LPC767FD,512 MCU still in active production?
No, the product is no longer manufactured. - What instruction set does the P87LPC767FD,512 MCU use?
The MCU uses a CISC (Complex Instruction Set Computer) instruction set. - What are some common applications of the P87LPC767FD,512 MCU?
Common applications include industrial control systems, automotive systems, consumer electronics, and medical devices. - What package type is the P87LPC767FD,512 MCU available in?

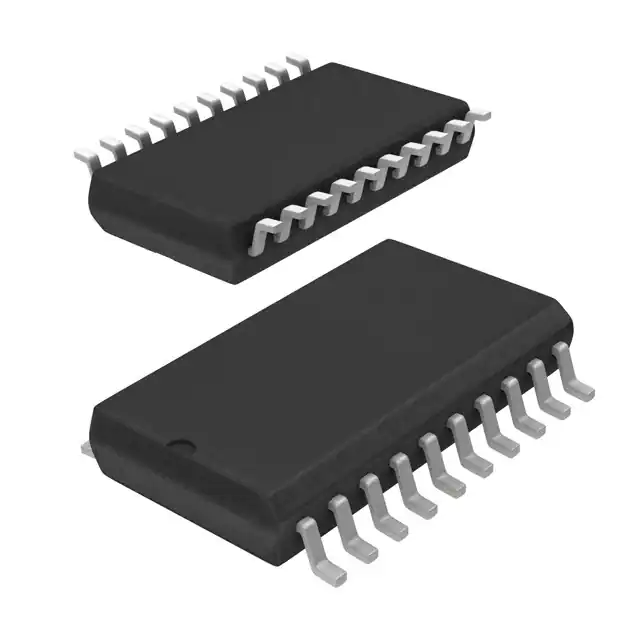

The MCU is available in a 20-SOIC package. - Where can I find detailed specifications for the P87LPC767FD,512 MCU?
Detailed specifications can be found on the datasheet available from sources like Digi-Key, Mouser, and the official NXP website.
