Overview
The P87LPC764FDH,512 is a 20-pin single-chip microcontroller designed by NXP USA Inc. This microcontroller is part of the LPC700 series and is tailored for applications that require high integration and low cost solutions. Although this product is currently obsolete and no longer manufactured, it remains relevant for existing designs and legacy systems.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | P87LPC764FDH,512 |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Program Memory | 4 KB OTP (One-Time Programmable) |

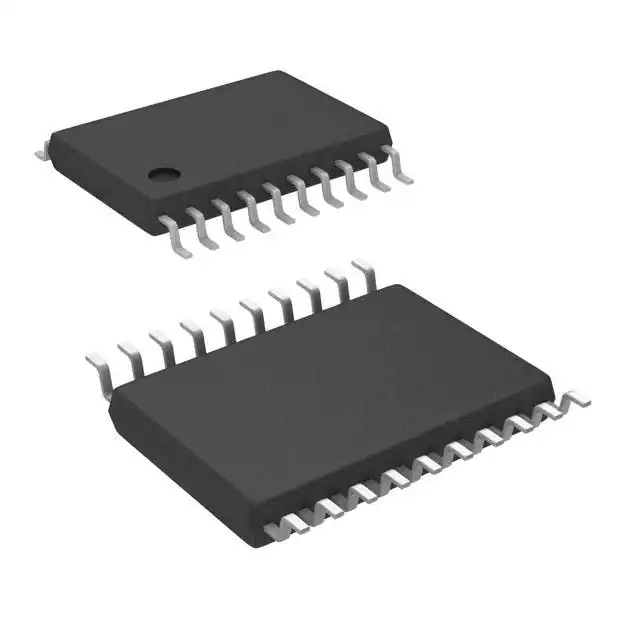

| Package Type | 20-TSSOP |
| Pins | 20 |
| Status | Obsolete |
Key Features
- High-integration design suitable for low pin count applications.
- Low cost solution.
- 8-bit 8051 core processor.
- 4 KB of one-time programmable (OTP) memory.
- Compact 20-TSSOP package.
Applications
The P87LPC764FDH,512 is designed for a variety of low pin count applications, including industrial control systems, consumer electronics, and other embedded systems where space and cost are critical factors. It is particularly useful in scenarios where high integration and simplicity are required.
Q & A
- What is the core processor of the P87LPC764FDH,512?
The core processor is an 8-bit 8051. - How much program memory does the P87LPC764FDH,512 have?
It has 4 KB of one-time programmable (OTP) memory. - What is the package type of the P87LPC764FDH,512?
The package type is 20-TSSOP. - Is the P87LPC764FDH,512 still in production?
No, the P87LPC764FDH,512 is obsolete and no longer manufactured. - What are some typical applications for the P87LPC764FDH,512?
Typical applications include industrial control systems, consumer electronics, and other embedded systems requiring high integration and low cost. - How many pins does the P87LPC764FDH,512 have?
The P87LPC764FDH,512 has 20 pins. - What series does the P87LPC764FDH,512 belong to?
The P87LPC764FDH,512 belongs to the LPC700 series. - What is the significance of OTP memory in the P87LPC764FDH,512?
OTP (One-Time Programmable) memory means that the program memory can be programmed only once, which is suitable for applications where the code does not need to be changed after deployment. - Where can I find detailed specifications for the P87LPC764FDH,512?
Detailed specifications can be found in the datasheet available on NXP's official website and other electronics component distributors like Digi-Key and Mouser. - What are the advantages of using the P87LPC764FDH,512 in embedded systems?
The advantages include high integration, low cost, and a compact package, making it suitable for space-constrained and cost-sensitive applications.
