Overview
The MMPF0100F9AZESR2 is a highly advanced SMARTMOS power management integrated circuit (PMIC) designed by NXP USA Inc. This device is part of the MMPF0100 series and is renowned for its highly programmable and configurable architecture. It is specifically tailored to provide comprehensive power management solutions for complex systems, including those based on the i.MX 6 processor. The PMIC integrates multiple power devices and requires minimal external components, making it an efficient choice for a wide range of applications.
Key Specifications
| Parameter | Description |
|---|---|

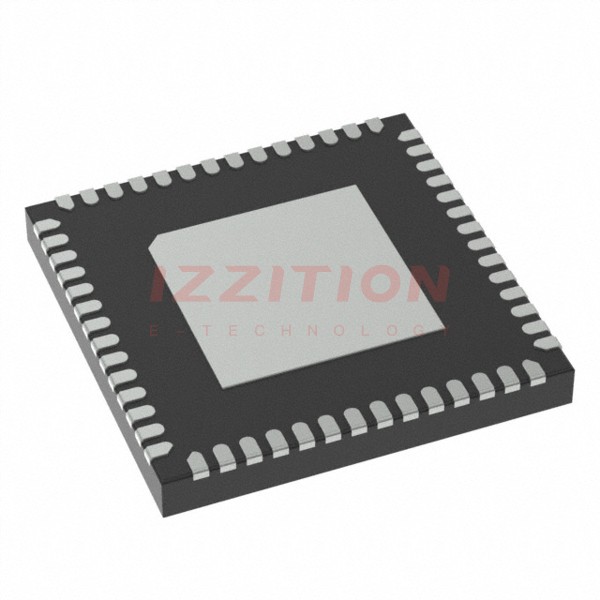

| Package/Case | QFN-56 |
| Number of Buck Converters | Four to six, depending on configuration |
| Linear Regulators | Six general-purpose linear regulators |
| Boost Regulator | Up to 5.0 V output |
| Coin Cell Charger | Yes, with RTC supply |
| DDR Termination | DDR termination tracking mode option |
| Programmable Output | Voltage, sequence, and timing |
| OTP Memory | One time programmable (OTP) memory for device configuration |
| I2C Control | Yes, with processor interface and event detection |
| Thermal Monitoring | Advanced thermal monitoring and warning features |
| Overcurrent Protection | Yes, to prevent damage from excessive current draw |
Key Features
- Advanced Programmability: Highly programmable and configurable architecture with OTP memory for custom or pre-programmed configurations.
- Multiple Power Devices: Integrates up to six buck converters, six linear regulators, a boost regulator, and a coin cell charger with RTC supply.
- DDR Termination: DDR termination tracking mode option for efficient memory management.
- Thermal Monitoring and Warning: Real-time thermal monitoring and warning features for safe operation.
- Overcurrent Protection: Offers overcurrent protection to prevent damage from excessive current draw.
- Multi-Processor Support: Enables reliable operation in complex systems with multiple processors.
- I2C Control: I2C control with processor interface and event detection for seamless system integration).
Applications
- Tablets and eReaders: Ideal for powering complete systems in portable devices).
- IPTV and Set Top Boxes: Efficient power management for multimedia and entertainment systems).
- Industrial Control Systems: Suitable for industrial automation, home automation, and energy management systems).
- Medical Monitoring Systems: Reliable power delivery for medical devices and monitoring systems).
- Aerospace and Defense Systems: Used in critical applications requiring advanced power management and thermal monitoring).
- Automotive Systems: Applicable in automotive systems where robust power management is essential).
Q & A
- What is the MMPF0100F9AZESR2 used for?
The MMPF0100F9AZESR2 is a power management IC used for efficient power delivery in complex systems, particularly those based on the i.MX 6 processor.
- What are the key features of the MMPF0100F9AZESR2?
Key features include multiple buck converters, linear regulators, a boost regulator, coin cell charger, DDR termination tracking, OTP memory, and advanced thermal monitoring and overcurrent protection.
- What package options are available for the MMPF0100F9AZESR2?
The device is available in a QFN-56 package.
- Does the MMPF0100F9AZESR2 support I2C control?
Yes, it supports I2C control with a processor interface and event detection.
- What applications is the MMPF0100F9AZESR2 suitable for?
It is suitable for tablets, eReaders, IPTV, set top boxes, industrial control systems, medical monitoring systems, aerospace and defense systems, and automotive systems.
- How does the MMPF0100F9AZESR2 manage thermal conditions?
The device features advanced thermal monitoring and warning features to ensure safe operation.
- Does the MMPF0100F9AZESR2 have overcurrent protection?
Yes, it includes overcurrent protection to prevent damage from excessive current draw.
- Can the MMPF0100F9AZESR2 be programmed?
Yes, it has one time programmable (OTP) memory for custom or pre-programmed configurations.
- What is the significance of the OTP memory in the MMPF0100F9AZESR2?
The OTP memory allows for device configuration, either in pre-programmed standard versions or non-programmed for custom programming.
- How does the MMPF0100F9AZESR2 support multi-processor systems?
The device enables reliable operation in complex systems with multiple processors.
