Overview
The MK60DN512ZVMD10 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K6x series. It is based on the ARM Cortex-M4 RISC architecture and operates at a maximum frequency of 100MHz. This microcontroller features 512KB of internal flash memory and 128KB of internal RAM. It includes two 16-bit SAR A/D converters, two 12-bit D/A converters, and 100 general-purpose I/O pins. The device also supports various communication interfaces such as CAN, I2C, SPI, UART, USART, Ethernet, and USB OTG, making it versatile for a wide range of applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Device Core | ARM Cortex-M4 |
| Data Bus Width | 32 bit |
| Operating Frequency Max | 100MHz |
| Program Memory Size | 512KB |
| RAM Memory Size | 128KB |
| No. of Pins | 144 Pins |

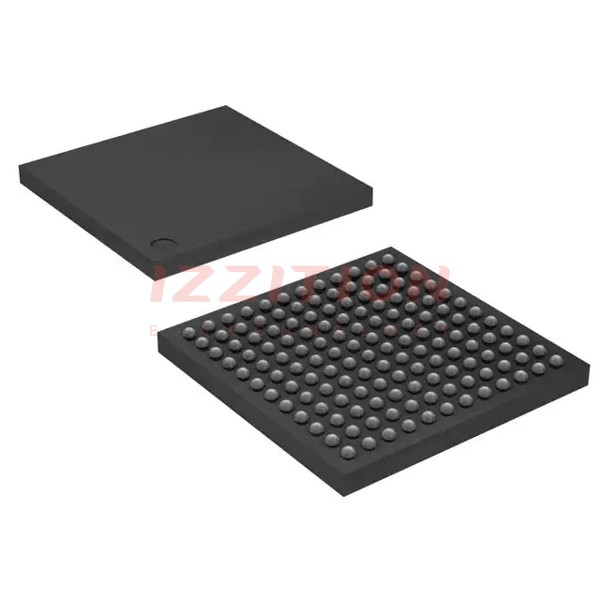

| IC Case / Package | 144-MAPBGA |
| No. of I/O's | 100 I/O's |
| Interfaces | CAN, I2C, SPI, UART, USART, Ethernet, USB, USB OTG |
| ADC Channels | 46 Channels (16-bit) |
| ADC Resolution | 16 Bit |
| Supply Voltage Min | 1.71V |
| Supply Voltage Max | 3.6V |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| IC Mounting | Surface Mount |
| MCU Family | Kinetis K |
| MCU Series | K6x |
| MSL | MSL 3 - 168 hours |
Key Features
- High-Performance Core: Based on the ARM Cortex-M4 RISC architecture, operating at up to 100MHz.
- Memory and Storage: 512KB of internal flash memory and 128KB of internal RAM.
- Analog and Digital Conversion: Includes two 16-bit SAR A/D converters and two 12-bit D/A converters.
- Communication Interfaces: Supports CAN, I2C, SPI, UART, USART, Ethernet, and USB OTG.
- Peripheral Devices: Features DMA, I²S, LVD, POR, PWM, and WDT.
- Packaging and Mounting: 144-MAPBGA package with surface mount capability, ensuring compact design and good heat dissipation.
- Operating Conditions: Operates within a wide voltage range of 1.71V to 3.6V and an operating temperature range of -40°C to 105°C.
Applications
- Robots: Suitable for robotic systems requiring high-performance processing and multiple interface capabilities.
- Smart Home: Used in smart home devices that need advanced communication and control features.
- Automotive Electronics: Applied in automotive systems for its robust performance and reliability.
- Medical Equipment: Utilized in medical devices that require precise analog and digital conversions.
- Aerospace: Employed in aerospace applications due to its high reliability and wide operating temperature range.
- Intelligent Instruments: Used in intelligent instruments that require advanced processing and communication capabilities.
- Embedded Systems: Ideal for various embedded system applications requiring high performance and multiple interfaces.
- Industrial Automation: Applied in industrial automation for its robustness and ability to handle complex tasks.
Q & A
- What is the core architecture of the MK60DN512ZVMD10 microcontroller?
The MK60DN512ZVMD10 is based on the ARM Cortex-M4 RISC architecture.
- What is the maximum operating frequency of the MK60DN512ZVMD10?
The maximum operating frequency is 100MHz.
- How much program memory and RAM does the MK60DN512ZVMD10 have?
The device has 512KB of internal flash memory and 128KB of internal RAM.
- What types of communication interfaces does the MK60DN512ZVMD10 support?
The device supports CAN, I2C, SPI, UART, USART, Ethernet, and USB OTG interfaces.
- What is the package type and number of pins for the MK60DN512ZVMD10?
The device is packaged in a 144-MAPBGA package with 144 pins.
- What is the operating voltage range for the MK60DN512ZVMD10?
The operating voltage range is from 1.71V to 3.6V.
- What is the operating temperature range for the MK60DN512ZVMD10?
The operating temperature range is from -40°C to 105°C.
- Does the MK60DN512ZVMD10 support analog to digital conversion?
Yes, it includes two 16-bit SAR A/D converters and two 12-bit D/A converters.
- What peripheral devices are supported by the MK60DN512ZVMD10?
The device supports DMA, I²S, LVD, POR, PWM, and WDT.
- Is the MK60DN512ZVMD10 RoHS compliant?
Yes, the MK60DN512ZVMD10 is RoHS compliant.
