Overview

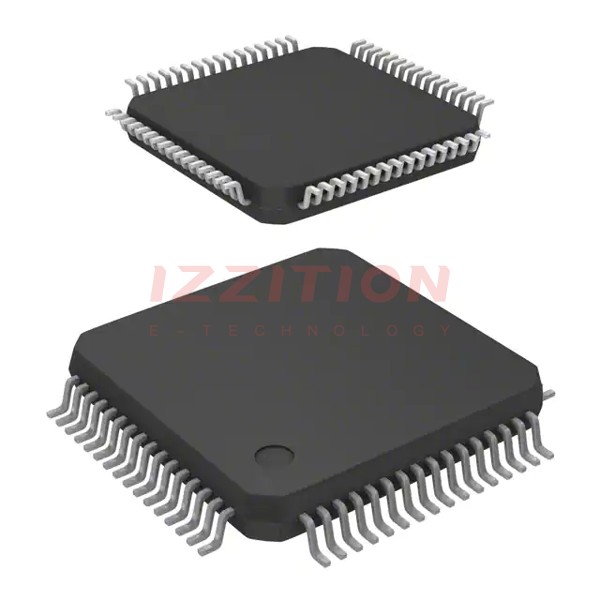

The MK12DX256VLH5 is a microcontroller unit (MCU) from NXP USA Inc., part of the Kinetis K12 family. This baseline MCU is designed for cost-sensitive applications that require low power consumption and high processing efficiency. It supports multiple communication interfaces, making it suitable for efficient data exchange, industrial network bridging, and audio system interfacing. The MCU is based on the ARM® Cortex®-M4 core processor, ensuring robust performance and energy efficiency.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M4 |
| Maximum Clock Frequency | 50 MHz |
| Minimum Supply Voltage | 1.71 V |
| Number of ADC Channels | 1 |
| Number of I2C Channels | 2 |
| Number of I/Os | 44 |
| Number of PWM Channels | 12 |
| Package Type | Tray |
| Product Status | Active |
Key Features
- Low power consumption and high processing efficiency
- Multiple communication interfaces for efficient data exchange
- Support for industrial network bridging and audio system interfacing
- ARM® Cortex®-M4 core processor for robust performance
- High number of I/Os and PWM channels for versatile applications
Applications
The MK12DX256VLH5 is suitable for a variety of cost-sensitive applications, including:
- Industrial control systems requiring low power and efficient communication
- Audio systems that need robust processing and multiple interfaces
- Embedded systems where energy efficiency and processing power are critical
Q & A
- What is the core processor of the MK12DX256VLH5? The core processor is the ARM® Cortex®-M4.
- What is the maximum clock frequency of the MK12DX256VLH5? The maximum clock frequency is 50 MHz.
- What is the minimum supply voltage for the MK12DX256VLH5? The minimum supply voltage is 1.71 V.
- How many ADC channels does the MK12DX256VLH5 have? It has 1 ADC channel.
- How many I2C channels does the MK12DX256VLH5 support? It supports 2 I2C channels.
- What is the number of I/Os available on the MK12DX256VLH5? There are 44 I/Os available.
- How many PWM channels does the MK12DX256VLH5 have? It has 12 PWM channels.
- What is the package type of the MK12DX256VLH5? The package type is Tray.
- What is the current product status of the MK12DX256VLH5? The product status is Active.
- What are some typical applications for the MK12DX256VLH5? Typical applications include industrial control systems, audio systems, and embedded systems requiring low power and high processing efficiency.
