Overview
The MK10FX512VLQ12 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K10 family. This MCU is built around the ARM Cortex-M4 RISC core and is designed to offer advanced serial communication, robust analog integration, and customizable system expansion. It is particularly suited for applications in medical, industrial, and other demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 32-bit ARM Cortex-M4 RISC |
| Flash Memory | 512 KB |
| Operating Voltage | 1.8V, 2.5V, 3.3V |

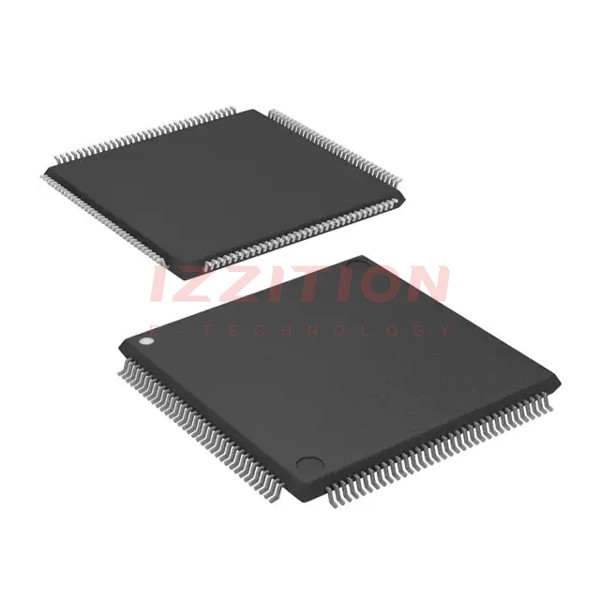

| Package Type | 144-pin LQFP |
| Mounting Type | Surface Mount |
| Maximum Clock Speed | 120 MHz |
Key Features
- Advanced serial communication interfaces including UART, SPI, I2C, and CAN.
- Robust analog integration with features like ADC, DAC, and analog comparators.
- Customizable system expansion through various peripheral interfaces.
- High-performance ARM Cortex-M4 core with DSP instructions.
- Low power consumption with multiple power-saving modes.
Applications
The MK10FX512VLQ12 is versatile and can be used in a variety of applications, including:
- Medical devices: Due to its reliability and precision, it is suitable for medical equipment and diagnostic tools.
- Industrial automation: It can be used in control systems, sensors, and actuators.
- Consumer electronics: Suitable for smart home devices, wearables, and other consumer electronics.
- Automotive systems: Can be used in vehicle control systems and infotainment systems.
Q & A
- What is the core architecture of the MK10FX512VLQ12?
The MK10FX512VLQ12 is based on the 32-bit ARM Cortex-M4 RISC core. - How much flash memory does the MK10FX512VLQ12 have?
The MK10FX512VLQ12 has 512 KB of flash memory. - What are the operating voltage ranges for the MK10FX512VLQ12?
The operating voltage ranges are 1.8V, 2.5V, and 3.3V. - What is the package type of the MK10FX512VLQ12?
The package type is a 144-pin LQFP. - What is the maximum clock speed of the MK10FX512VLQ12?
The maximum clock speed is 120 MHz. - What are some of the advanced serial communication interfaces available on the MK10FX512VLQ12?
The interfaces include UART, SPI, I2C, and CAN. - Is the MK10FX512VLQ12 suitable for medical applications?
Yes, it is suitable for medical applications due to its reliability and precision. - What are some power-saving features of the MK10FX512VLQ12?
The MCU has multiple power-saving modes to reduce power consumption. - Can the MK10FX512VLQ12 be used in industrial automation?
Yes, it can be used in control systems, sensors, and actuators in industrial automation. - Is the MK10FX512VLQ12 compatible with surface mount technology?
Yes, it is designed for surface mount technology.
