Overview
The MK10DN64VFT5 is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K10 family. This device is designed to offer high feature integration in a small form factor, making it ideal for a variety of applications requiring low power consumption and robust performance. The MK10DN64VFT5 is based on the ARM Cortex-M4 core and operates at a frequency of 50 MHz, providing a scalable entry point into the mid-performance Kinetis portfolio.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | MK10DN64VFT5 |
| Core Processor | ARM Cortex-M4 |
| Operating Frequency | 50 MHz |
| Program Memory Size | 64 KB Flash |
| RAM Size | 16 KB |
| EEPROM Size | 2 KB |

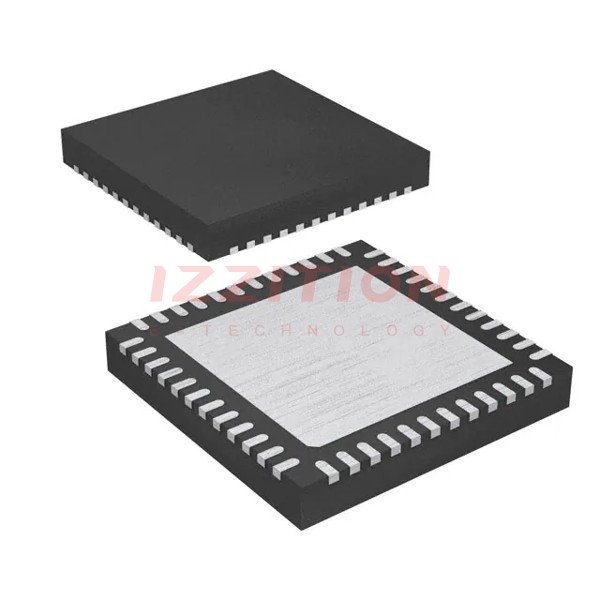

| Package / Case | 48-QFN (6x6 mm) |
| Supply Voltage | 1.71 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Number of I/O | 44 |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Connectivity | I²C, IrDA, SPI, UART/USART |
| Data Converters | A/D 19x16b |
Key Features
- High Feature Integration: The MK10DN64VFT5 includes a rich suite of analog, communication, timing, and control peripherals.
- Low Power Consumption: Designed for low power applications, making it suitable for battery-powered devices.
- Robust Serial Communication: Supports I²C, IrDA, SPI, and UART/USART for robust serial communication.
- Integrated Peripherals: Includes DMA, I²S, LVD, POR, PWM, and WDT for enhanced functionality.
- High Operating Temperature Range: Operates from -40°C to 105°C, making it suitable for a wide range of environments.
Applications
The MK10DN64VFT5 is versatile and can be used in various applications, including:
- Industrial Automation: For control and monitoring systems.
- Consumer Electronics: In devices such as smart home appliances and wearables.
- Medical Devices: For portable medical equipment and diagnostic tools.
- Automotive Systems: For in-vehicle control and monitoring systems.
- IoT Devices: For connected devices requiring low power and high performance.
Q & A
- What is the core processor of the MK10DN64VFT5?
The core processor is the ARM Cortex-M4. - What is the operating frequency of the MK10DN64VFT5?
The operating frequency is 50 MHz. - How much program memory does the MK10DN64VFT5 have?
The MK10DN64VFT5 has 64 KB of Flash memory. - What is the package type of the MK10DN64VFT5?
The package type is 48-QFN (6x6 mm). - What is the supply voltage range for the MK10DN64VFT5?
The supply voltage range is 1.71 V ~ 3.6 V. - What are the key peripherals included in the MK10DN64VFT5?
The key peripherals include DMA, I²S, LVD, POR, PWM, and WDT. - What are the communication interfaces supported by the MK10DN64VFT5?
The device supports I²C, IrDA, SPI, and UART/USART. - What is the operating temperature range of the MK10DN64VFT5?
The operating temperature range is -40°C ~ 105°C (TA). - How many I/O pins does the MK10DN64VFT5 have?
The device has 44 programmable I/O pins. - What type of data converters are included in the MK10DN64VFT5?
The device includes A/D 19x16b data converters.
