Overview

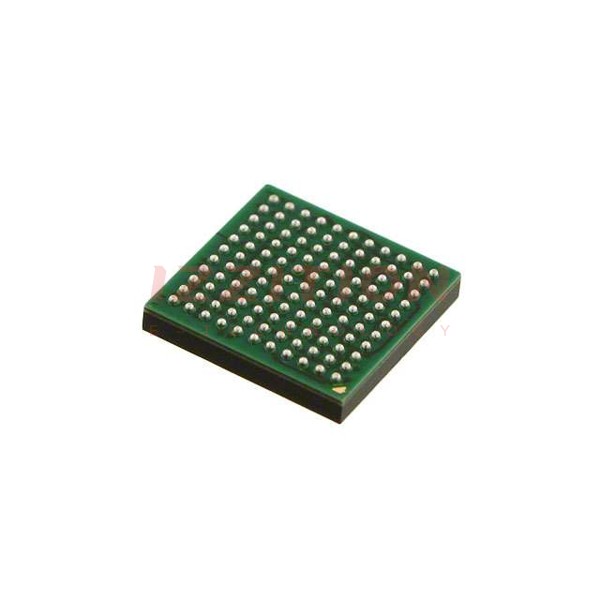

The MK10DN512VMC10R is a 32-bit microcontroller from NXP USA Inc., part of the Kinetis K10 series. This microcontroller is based on the ARM® Cortex®-M4 core and is designed to offer high performance and low power consumption. It features a 100 MHz CPU with DSP instructions, making it suitable for a wide range of applications that require both processing power and energy efficiency.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Core Type | ARM® Cortex®-M4 | |
| Core Frequency | Up to 100 MHz | |
| Flash Memory | 512 KB | |
| RAM | Up to 128 KB | |
| Package Type | 121-MAPBGA (8x8) | |
| Voltage Range | 1.71 to 3.6 V | V |
| Temperature Range | -40 to 105°C | °C |
| Clock Sources | 3 to 32 MHz crystal oscillator, 32 kHz crystal oscillator | |
| Analog Modules | Two 16-bit SAR ADCs, Two 12-bit DACs, Three analog comparators | |
| Communication Interfaces | Two CAN modules, Three SPI modules, Two I2C modules, Six UART modules, SDHC, I2S module |
Key Features
- High-Performance Core: Up to 100 MHz ARM Cortex-M4 core with DSP instructions, delivering 1.25 Dhrystone MIPS per MHz.
- Low Power Modes: Multiple low-power modes to optimize power consumption based on application requirements.
- Memory and Interfaces: Up to 512 KB program flash memory, up to 128 KB RAM, serial programming interface (EzPort), and FlexBus external bus interface.
- Analog Modules: Two 16-bit SAR ADCs, two 12-bit DACs, programmable gain amplifier (PGA), and three analog comparators.
- Communication Interfaces: Two CAN modules, three SPI modules, two I2C modules, six UART modules, SDHC, and I2S module.
- Security and Integrity: Hardware CRC module, 128-bit unique identification (ID) number per chip.
- Human-Machine Interface: Low-power hardware touch sensor interface (TSI) and general-purpose input/output.
Applications
- Embedded Systems: Suitable for industrial control systems, automotive electronics, and medical devices.
- Consumer Electronics: Can be used in smartphones, tablets, and gaming consoles.
- Aerospace and Defense: High-reliability features make it suitable for military communication systems and navigation devices.
- Industrial Automation: Used in manufacturing automation and process control.
- Automotive Electronics: Suitable for infotainment systems and advanced driver-assistance systems (ADAS).
- Medical Devices: Used in patient monitoring systems and diagnostic equipment.
Q & A
- What is the core type of the MK10DN512VMC10R microcontroller?
The core type is ARM® Cortex®-M4.
- What is the maximum operating frequency of the MK10DN512VMC10R?
The maximum operating frequency is up to 100 MHz.
- How much flash memory does the MK10DN512VMC10R have?
The MK10DN512VMC10R has 512 KB of flash memory.
- What is the package type of the MK10DN512VMC10R?
The package type is 121-MAPBGA (8x8).
- What is the voltage range for the MK10DN512VMC10R?
The voltage range is 1.71 to 3.6 V.
- What are the key analog modules available on the MK10DN512VMC10R?
The key analog modules include two 16-bit SAR ADCs, two 12-bit DACs, and three analog comparators.
- What communication interfaces are supported by the MK10DN512VMC10R?
The supported communication interfaces include two CAN modules, three SPI modules, two I2C modules, six UART modules, SDHC, and I2S module.
- Does the MK10DN512VMC10R support low-power modes?
Yes, it supports multiple low-power modes to optimize power consumption.
- What security features are available on the MK10DN512VMC10R?
The security features include a hardware CRC module and a 128-bit unique identification (ID) number per chip.
- What are some typical applications for the MK10DN512VMC10R?
Typical applications include embedded systems, consumer electronics, aerospace and defense, industrial automation, automotive electronics, and medical devices.
