Overview
The MK10DN512VMC10 is a 32-bit microcontroller from NXP Semiconductors, part of the Kinetis K10 family. It features an ARM Cortex-M4 core and is designed for applications requiring high-precision analog integration and advanced serial communication. This MCU is suitable for various applications such as electronic point of sale (EPOS) devices, flow meters, gaming controllers, HVAC systems, and remote sensors.
Key Specifications
| Specification | Details |
|---|---|
| Core | ARM Cortex-M4 |
| Operating Frequency | Up to 100 MHz |
| Flash Memory | Up to 512 KB |
| RAM | Up to 128 KB |
| Voltage Range | 1.71 to 3.6 V |
| Temperature Range | -40 to 105°C |

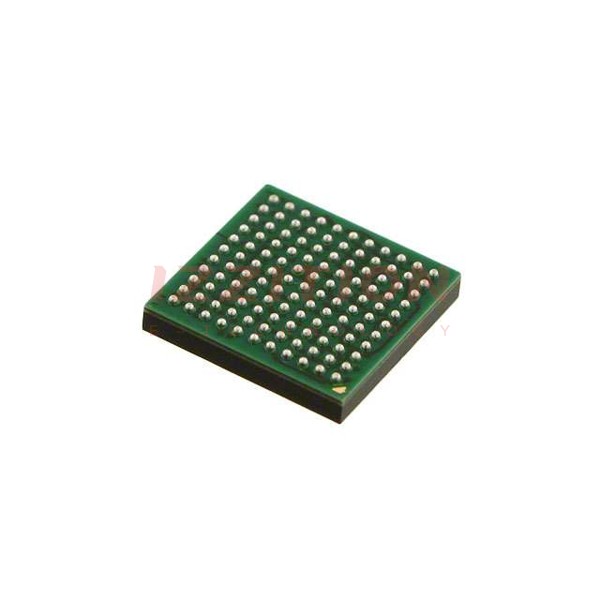

| Package Type | LFBGA121 |
| Clocks | 3 to 32 MHz crystal oscillator, 32 kHz crystal oscillator, Multi-purpose clock generator |
| Analog Modules | Two 16-bit SAR ADCs, Programmable gain amplifier (PGA), Two 12-bit DACs, Two transimpedance amplifiers, Three analog comparators |
| Communication Interfaces | Two CAN modules, Three SPI modules, Two I2C modules, Six UART modules, Secure Digital host controller (SDHC), I2S module |
Key Features
- High-precision analog integration with two 16-bit SAR ADCs, programmable gain amplifiers, and two 12-bit DACs.
- Advanced serial communication interfaces including CAN, SPI, I2C, UART, SDHC, and I2S.
- Low-power modes for power optimization, including multiple low-power modes and a low-leakage wakeup unit.
- Security and integrity modules such as a hardware CRC module and a 128-bit unique identification number per chip.
- Human-machine interface capabilities with a low-power hardware touch sensor interface (TSI) and general-purpose input/output.
- Timers and motor control timers, including a programmable delay block, quadrature decoders, and periodic interrupt timers.
Applications
- Electronic Point of Sale (EPOS) devices.
- Flow meters.
- Gaming controllers.
- HVAC systems.
- Remote sensors.
Q & A
- What is the core architecture of the MK10DN512VMC10?
The MK10DN512VMC10 features an ARM Cortex-M4 core. - What is the maximum operating frequency of the MK10DN512VMC10?
The maximum operating frequency is up to 100 MHz. - How much flash memory does the MK10DN512VMC10 have?
The MK10DN512VMC10 has up to 512 KB of flash memory. - What is the voltage range for the MK10DN512VMC10?
The voltage range is from 1.71 to 3.6 V. - What are the key analog modules available in the MK10DN512VMC10?
The key analog modules include two 16-bit SAR ADCs, programmable gain amplifiers, two 12-bit DACs, two transimpedance amplifiers, and three analog comparators. - What communication interfaces are supported by the MK10DN512VMC10?
The MK10DN512VMC10 supports two CAN modules, three SPI modules, two I2C modules, six UART modules, a Secure Digital host controller (SDHC), and an I2S module. - What are the low-power features of the MK10DN512VMC10?
The MCU includes multiple low-power modes and a low-leakage wakeup unit for power optimization. - Does the MK10DN512VMC10 have any security features?
Yes, it includes a hardware CRC module and a 128-bit unique identification number per chip. - What human-machine interface capabilities does the MK10DN512VMC10 offer?
The MCU offers a low-power hardware touch sensor interface (TSI) and general-purpose input/output. - What timers and motor control capabilities are available in the MK10DN512VMC10?
The MCU includes a programmable delay block, quadrature decoders, periodic interrupt timers, and other motor control/general purpose/PWM timers.
