Overview
The MIMXRT1052CVL5B is a microcontroller from NXP USA Inc., part of the i.MX RT1050 family. This device is built around the Arm Cortex-M7 core, operating at speeds up to 528 MHz, providing high CPU performance and excellent real-time response. The i.MX RT1050 series is designed for general-purpose and industrial applications, offering a robust set of peripherals and interfaces.
Key Specifications
| Parameter | Specification |
|---|---|
| Core | Arm Cortex-M7 |
| Operating Frequency | Up to 528 MHz |
| On-chip RAM | 512 KB |
| Boot ROM | 96 KB |

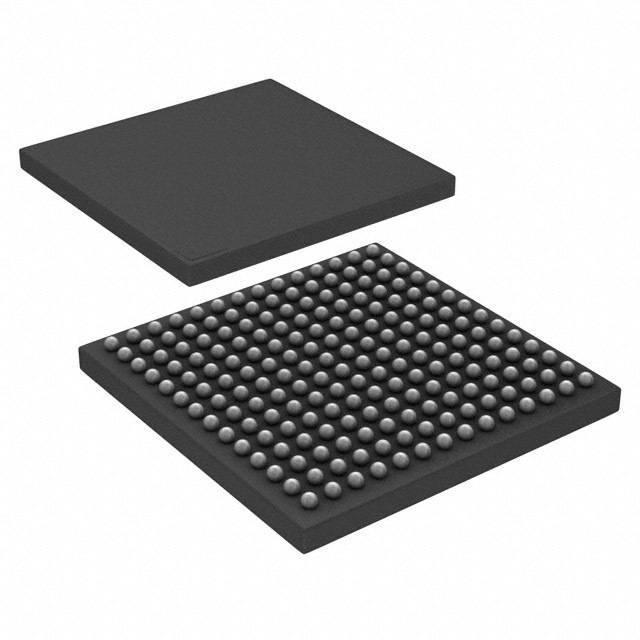

| Package | 196-pin MAPBGA, 10 x 10 mm, 0.65 mm pitch |
| Junction Temperature | -40 to +105 °C |
| Interfaces | USB OTG x2, eMMC 4.5/SD 3.0 x2, SPI x4, Ethernet, UART x8, I2C x4, FlexSPI, CAN x2, FlexIO x2 |
| GPIOs | 127 |
| Other Features | ADC x2, ACMP x4, TSC, DCDC, Temperature sensor, GPC hardware power management controller |
Key Features
- High-Performance CPU: Arm Cortex-M7 core operating at up to 528 MHz.
- Flexible Memory Configuration: 512 KB on-chip RAM that can be configured as TCM or general-purpose RAM.
- Comprehensive Peripherals: Includes USB OTG, eMMC/SD, SPI, Ethernet, UART, I2C, FlexSPI, CAN, and FlexIO.
- Advanced Analog Capabilities: Features ADCs, ACMPs, and a temperature sensor.
- Power Management: Includes a GPC hardware power management controller and DCDC.
- Security Features: HAB/DCP/BEE, TRNG, SNVS, and SJC.
Applications
- Industrial Control Systems: Suitable for automation, robotics, and other industrial applications requiring high performance and real-time response.
- Consumer Electronics: Ideal for smart home devices, wearables, and other consumer electronics that need robust processing and peripheral support.
- IoT Devices: Can be used in IoT applications that require efficient processing, low power consumption, and a variety of interfaces.
- Automotive Systems: Applicable in automotive infotainment and control systems due to its high reliability and performance.
Q & A
- Q: What is the operating frequency of the MIMXRT1052CVL5B?
A: The MIMXRT1052CVL5B operates at speeds up to 528 MHz. - Q: What type of core does the MIMXRT1052CVL5B use?
A: The MIMXRT1052CVL5B uses the Arm Cortex-M7 core. - Q: How much on-chip RAM does the MIMXRT1052CVL5B have?
A: The MIMXRT1052CVL5B has 512 KB of on-chip RAM. - Q: What are the key interfaces supported by the MIMXRT1052CVL5B?
A: The MIMXRT1052CVL5B supports USB OTG, eMMC/SD, SPI, Ethernet, UART, I2C, FlexSPI, CAN, and FlexIO. - Q: What is the package type and size of the MIMXRT1052CVL5B?
A: The MIMXRT1052CVL5B comes in a 196-pin MAPBGA package, 10 x 10 mm, with a 0.65 mm pitch. - Q: What is the junction temperature range of the MIMXRT1052CVL5B?
A: The junction temperature range is -40 to +105 °C. - Q: Does the MIMXRT1052CVL5B have any security features?
A: Yes, it includes HAB/DCP/BEE, TRNG, SNVS, and SJC for enhanced security. - Q: What are some typical applications of the MIMXRT1052CVL5B?
A: It is suitable for industrial control systems, consumer electronics, IoT devices, and automotive systems. - Q: Is the MIMXRT1052CVL5B supported by any specific software tools?
A: Yes, it is fully supported by NXP's MCUXpresso Software and Tools. - Q: Does the MIMXRT1052CVL5B have any power management features?
A: Yes, it includes a GPC hardware power management controller and DCDC.
