Overview

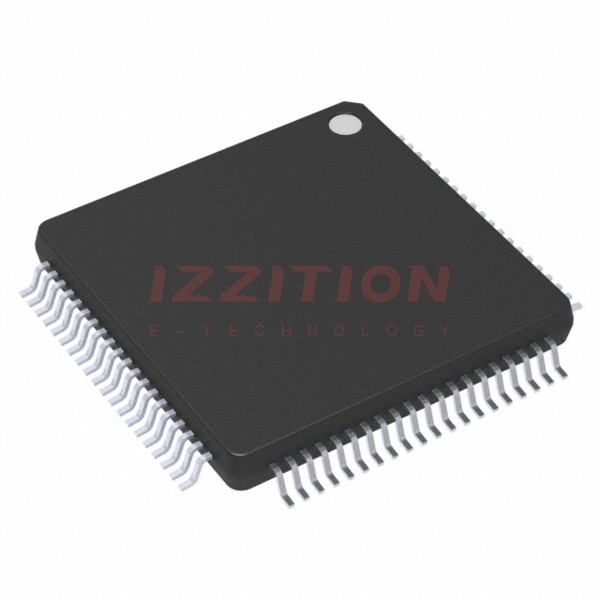

The MIMXRT1011DAE5A is a high-performance, low-power microcontroller unit (MCU) manufactured by NXP USA Inc. It is part of the i.MX RT1010 crossover processor family, which is powered by the Arm Cortex-M7 core. This MCU is designed to offer the ease of use of a traditional microcontroller while providing the high CPU performance and real-time response of a more advanced processor.
Key Specifications
| Parameter | Specification |
|---|---|
| Processor Core | Arm Cortex-M7 |
| Operating Frequency | Up to 500 MHz |
| On-chip RAM | 128 KB (flexibly configurable as TCM or general-purpose RAM) |
| Boot ROM | 64 KB |
| Package Type | 80-pin LQFP, 12 x 12 mm, 0.5 mm pitch |
| Operating Temperature | 0 to 95 °C (consumer grade) |
| Power Management | On-chip DCDC and LDO, adjustable high efficiency regulator |
| Memory Interfaces | Quad SPI, FlexSPI with on-the-fly AES decryption |
| Connectivity | USB 2.0 OTG controller, UART x4, I2C x2, SPI x2 |
| GPIO and Pin Multiplexing | 44 GPIOs, input/output multiplexing controller (IOMUXC) |
| Security Features | High Assurance Boot (HAB), Data Co-Processor (DCP), True Random Number Generation (TRNG) |
Key Features
- High Performance: Operates at speeds up to 500 MHz, providing high CPU performance and best real-time response.
- Advanced Power Management: Includes on-chip DCDC and LDO regulators, reducing the complexity of external power supply and simplifying power sequencing.
- Rich Peripherals: Supports various interfaces such as USB 2.0 OTG, UART, I2C, SPI, and GPIO with interrupt capability.
- Audio and Connectivity: Features synchronous audio interface (SAI) modules, SPDIF input and output, and medium quality audio via GPIO pads.
- Security: Includes High Assurance Boot (HAB), Data Co-Processor (DCP) with AES and SHA modes, and True Random Number Generation (TRNG).
- Debug and Trace: Supports Arm Cortex-M7 CoreSight debug and trace architecture, Trace Port Interface Unit (TPIU), and 5-pin JTAG and SWD debug interfaces.
Applications
- Industrial Automation: Suitable for motor control, industrial IoT, and other high-performance industrial applications.
- Consumer Electronics: Ideal for smart home devices, audio equipment, and other consumer products requiring high CPU performance and low power consumption.
- Medical Devices: Can be used in medical devices that require precise timing and high-performance processing.
- Automotive Systems: Applicable in automotive systems that need robust and secure processing capabilities.
Q & A
- What is the core architecture of the MIMXRT1011DAE5A MCU?
The MIMXRT1011DAE5A MCU is based on the Arm Cortex-M7 core.
- What is the maximum operating frequency of the MIMXRT1011DAE5A?
The maximum operating frequency is up to 500 MHz.
- How much on-chip RAM does the MIMXRT1011DAE5A have?
The MCU has 128 KB of on-chip RAM.
- What types of power management are integrated into the MIMXRT1011DAE5A?
The MCU includes on-chip DCDC and LDO regulators.
- What are the key security features of the MIMXRT1011DAE5A?
The key security features include High Assurance Boot (HAB), Data Co-Processor (DCP), and True Random Number Generation (TRNG).
- What are the primary interfaces supported by the MIMXRT1011DAE5A?
The MCU supports USB 2.0 OTG, UART, I2C, SPI, and GPIO interfaces.
- What is the package type and size of the MIMXRT1011DAE5A?
The package type is 80-pin LQFP, with dimensions of 12 x 12 mm and a 0.5 mm pitch.
- What is the operating temperature range for the MIMXRT1011DAE5A?
The operating temperature range is 0 to 95 °C for consumer grade.
- Does the MIMXRT1011DAE5A support audio interfaces?
Yes, it supports synchronous audio interface (SAI) modules and SPDIF input and output.
- What debug and trace capabilities does the MIMXRT1011DAE5A offer?
The MCU supports Arm Cortex-M7 CoreSight debug and trace architecture, Trace Port Interface Unit (TPIU), and 5-pin JTAG and SWD debug interfaces.
