MCIMX6U4AVM08ACR
  • Share:

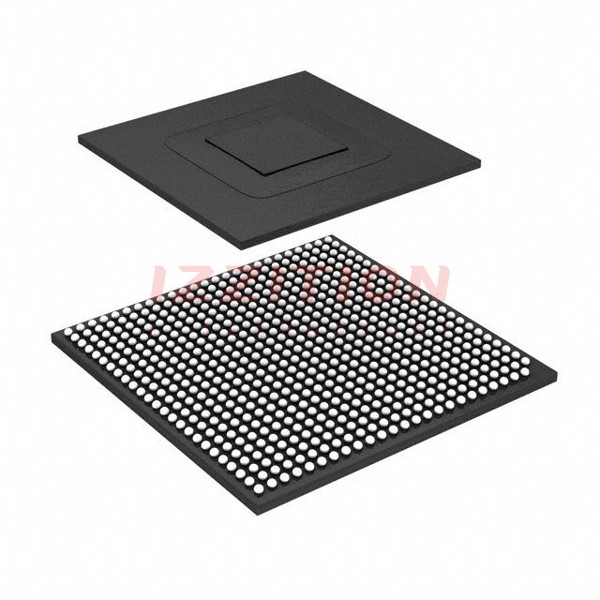

NXP USA Inc. MCIMX6U4AVM08ACR

Manufacturer No:
MCIMX6U4AVM08ACR
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
IC MPU I.MX6DL 800MHZ 624MAPBGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MCIMX6U4AVM08AC is a part of the i.MX 6 series of applications processors from NXP Semiconductors. This processor is designed to offer scalable platforms with broad levels of integration and power-efficient processing capabilities. It is based on the ARM Cortex-A9 core, making it suitable for a wide range of applications, including automotive, industrial, and consumer electronics.

Key Specifications

SpecificationDetails
Processor CoreARM Cortex-A9, 32-bit
Maximum Clock Frequency800 MHz
L1 Cache Instruction Memory32 kB
L1 Cache Data Memory32 kB
L2 Cache512 kB unified I/D cache
Memory SupportDDR3, DDR3L, LPDDR2, NOR Flash, PSRAM, NAND Flash (MLC and SLC), OneNAND™, eMMC up to rev 4.4/4.41
Package TypeLFBGA529, plastic, low profile
USB InterfacesOne high speed (HS) USB 2.0 OTG, three USB 2.0 hosts
Display InterfacesUp to four display interfaces, total raw pixel rate up to 450 Mpixels/sec, 24 bpp

Key Features

Multilevel Memory System: Includes L1 instruction and data caches, L2 cache, and support for various external memory devices such as DDR3, DDR3L, LPDDR2, NOR Flash, PSRAM, and NAND Flash.
Smart Speed Technology: Enables power management throughout the IC, allowing for feature-rich products with low power consumption in both active and low power modes.
Dynamic Voltage and Frequency Scaling: Improves power efficiency by scaling voltage and frequency to optimize performance.
NEON MPE Co-processor: Supports SIMD Media Processing Architecture with a NEON register file.
Multiple Interfaces: Supports MMC/SD/SDIO card ports, USB 2.0 OTG and hosts, and various display interfaces.

Applications

The MCIMX6U4AVM08AC is suitable for a variety of applications, including:
Automotive Navigation and Entertainment: Ideal for in-vehicle infotainment systems and navigation.
Industrial Automation: Can be used in industrial control systems and automation.
Consumer Electronics: Suitable for smart home devices, set-top boxes, and other consumer electronics.
Medical Devices: Can be used in medical devices requiring high performance and low power consumption.

Q & A

  • Q: What is the maximum clock frequency of the MCIMX6U4AVM08AC?

    A: The maximum clock frequency is 800 MHz.

  • Q: What type of processor core does the MCIMX6U4AVM08AC use?

    A: It uses the ARM Cortex-A9, 32-bit processor core.

  • Q: What types of memory does the MCIMX6U4AVM08AC support?

    A: It supports DDR3, DDR3L, LPDDR2, NOR Flash, PSRAM, NAND Flash (MLC and SLC), OneNAND™, and eMMC up to rev 4.4/4.41.

  • Q: What is the package type of the MCIMX6U4AVM08AC?

    A: The package type is LFBGA529, plastic, low profile.

  • Q: Does the MCIMX6U4AVM08AC support USB interfaces?

    A: Yes, it supports one high speed (HS) USB 2.0 OTG and three USB 2.0 hosts.

  • Q: What is the total raw pixel rate of the display interfaces?

    A: The total raw pixel rate of all display interfaces is up to 450 Mpixels/sec, 24 bpp.

  • Q: What is Smart Speed Technology in the context of this processor?

    A: Smart Speed Technology enables power management throughout the IC, allowing for feature-rich products with low power consumption in both active and low power modes.

  • Q: Can the MCIMX6U4AVM08AC be used in automotive applications?

    A: Yes, it is suitable for automotive navigation and entertainment systems.

  • Q: Does the processor support dynamic voltage and frequency scaling?

    A: Yes, it improves power efficiency by scaling voltage and frequency to optimize performance.

  • Q: What is the NEON MPE co-processor used for?

    A: The NEON MPE co-processor supports SIMD Media Processing Architecture with a NEON register file.

Product Attributes

Core Processor:ARM® Cortex®-A9
Number of Cores/Bus Width:2 Core, 32-Bit
Speed:800MHz
Co-Processors/DSP:Multimedia; NEON™ SIMD
RAM Controllers:LPDDR2, LVDDR3, DDR3
Graphics Acceleration:Yes
Display & Interface Controllers:Keypad, LCD
Ethernet:10/100/1000Mbps (1)
SATA:-
USB:USB 2.0 + PHY (4)
Voltage - I/O:1.8V, 2.5V, 2.8V, 3.3V
Operating Temperature:-40°C ~ 125°C (TJ)
Security Features:
Package / Case:624-LFBGA
Supplier Device Package:624-MAPBGA (21x21)
0 Remaining View Similar

In Stock

$53.66
15

Please send RFQ , we will respond immediately.
