Overview
The MCF5328CVM240J is a microcontroller from NXP USA Inc., part of the ColdFire microprocessor family. Although this specific part is now obsolete and no longer manufactured, it was widely used in various embedded systems due to its robust features and performance. The MCF5328CVM240J is based on the ColdFire V2 core, which provides a balance of performance and power efficiency.
Key Specifications
| Specification | Value |
|---|---|
| Core | ColdFire V2 |

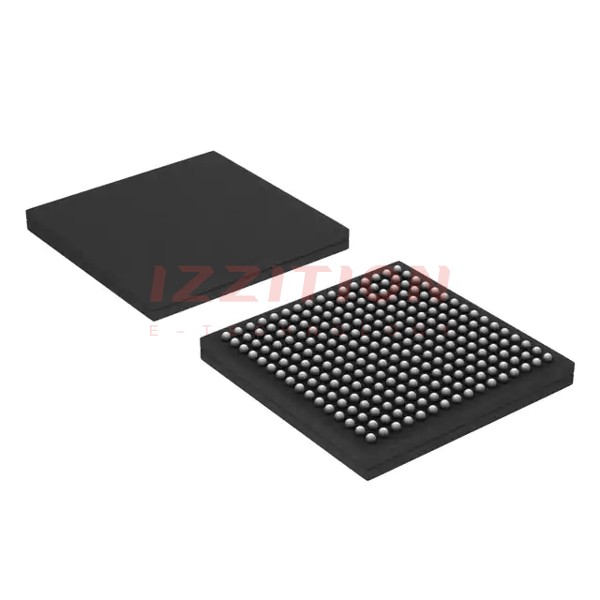

| Package | LBGA256: Low Profile Ball Grid Array, 256 balls, 1 mm pitch, 17 mm x 17 mm x 1.16 mm body |
| Flash Memory | 512 KB |
| SRAM | 32 KB |
| Clock Speed | Up to 240 MHz |
| Peripherals | UARTs, SPI, I2C, CAN, Ethernet, USB, ADC, DAC, etc. |
| Operating Voltage | 1.8V to 3.3V |
Key Features
- ColdFire V2 Core: Provides high performance and low power consumption.
- High-Speed Clock: Operates up to 240 MHz.
- Memory: 512 KB of Flash memory and 32 KB of SRAM.
- Peripheral Set: Includes UARTs, SPI, I2C, CAN, Ethernet, USB, ADC, and DAC.
- Low Power Consumption: Suitable for battery-powered and power-sensitive applications.
Applications
- Industrial Control Systems: Used in automation, robotics, and process control.
- Medical Devices: Suitable for medical equipment requiring high reliability and performance.
- Aerospace and Defense: Used in various military and aerospace applications due to its robustness and reliability.
- Automotive Systems: Applied in automotive control units, infotainment systems, and other vehicle electronics.
Q & A
- What is the core architecture of the MCF5328CVM240J?
The MCF5328CVM240J is based on the ColdFire V2 core.
- What is the maximum clock speed of the MCF5328CVM240J?
The maximum clock speed is up to 240 MHz.
- What type of package does the MCF5328CVM240J use?
The package is LBGA256: Low Profile Ball Grid Array with 256 balls.
- How much Flash and SRAM memory does the MCF5328CVM240J have?
The MCF5328CVM240J has 512 KB of Flash memory and 32 KB of SRAM.
- What are some of the peripherals available on the MCF5328CVM240J?
The peripherals include UARTs, SPI, I2C, CAN, Ethernet, USB, ADC, and DAC.
- Is the MCF5328CVM240J still in production?
No, the MCF5328CVM240J is obsolete and no longer manufactured.
- What are some common applications of the MCF5328CVM240J?
Common applications include industrial control systems, medical devices, aerospace and defense, and automotive systems.
- What is the operating voltage range of the MCF5328CVM240J?
The operating voltage range is from 1.8V to 3.3V.
- Why is the MCF5328CVM240J suitable for power-sensitive applications?
It is suitable due to its low power consumption.
- Where can I find detailed specifications for the MCF5328CVM240J?
Detailed specifications can be found on the NXP Semiconductors website and through datasheets available from various electronics distributors.
