Overview
The MCF52259CVN80 is a highly integrated 32-bit microcontroller from NXP USA Inc., part of the ColdFire V2 family. This device is designed to offer high performance and low power consumption, making it suitable for a variety of applications. It features the ColdFire V2 core operating at up to 80 MHz, providing 76 MIPS (Dhrystone 2.1) performance. The microcontroller includes a range of on-chip peripherals and interfaces, such as USB On-The-Go (OTG), Fast Ethernet, CAN, and cryptography acceleration, among others.
Key Specifications
| Parameter | Specification |
|---|---|
| Processor Core | ColdFire V2, 32-bit |
| Operating Frequency | Up to 80 MHz |
| MIPS Performance | 76 MIPS (Dhrystone 2.1) |
| Flash Memory | Up to 512 KB |
| SRAM | 64 KB |
| USB Interface | USB OTG dual-mode controller, USB 1.1 and 2.0 compliant |
| Ethernet Controller | Fast Ethernet controller (FEC), 10/100 BaseT/TX capability |
| CAN Interface | FlexCAN controller area network (CAN) module |
| UARTs | Three universal asynchronous/synchronous receiver/transmitters (UARTs) |
| I2C Modules | Two I2C modules, master and slave modes |
| ADC | Fast analog-to-digital converter (ADC), 12-bit resolution, 8 analog input channels |
| Timers | Four 32-bit timers with DMA support |

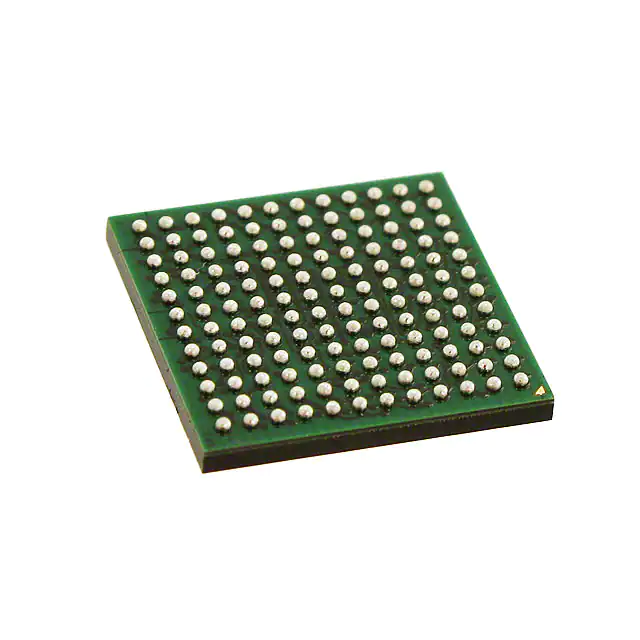

| Package | 144-pin LBGA |
| Supply Voltage | 3V to 3.6V |
Key Features
- High Performance: ColdFire V2 core operating at up to 80 MHz, delivering 76 MIPS (Dhrystone 2.1).
- On-Chip Memories: Up to 512 KB of flash memory and 64 KB of SRAM.
- USB OTG: Dual-mode host and device controller, USB 1.1 and 2.0 compliant.
- Fast Ethernet: 10/100 BaseT/TX capability, half duplex or full duplex, with on-chip transmit and receive FIFOs.
- CAN Interface: FlexCAN controller area network (CAN) module.
- UARTs: Three universal asynchronous/synchronous receiver/transmitters (UARTs) with DMA support.
- I2C Modules: Two I2C modules, fully compatible with industry-standard I2C bus.
- ADC: Fast analog-to-digital converter (ADC) with 12-bit resolution and 8 analog input channels.
- Timers: Four 32-bit timers with DMA support and programmable sources for clock input.
- Cryptography Acceleration Unit (CAU): For enhanced security features.
- Low Power Consumption: Designed for low power operation with various sleep and stop modes).
Applications
- Industrial Automation: Suitable for control systems, robotics, and industrial networking due to its Ethernet, CAN, and USB interfaces).
- Medical Devices: Can be used in medical equipment requiring high performance, low power, and advanced peripherals like ADC and UARTs).
- Consumer Electronics: Ideal for portable consumer devices that require USB OTG and other advanced interfaces).
- Automotive Systems: Applicable in automotive control units, diagnostics, and communication systems due to its CAN and Ethernet capabilities).
- Security Systems: The cryptography acceleration unit makes it suitable for secure communication and data encryption applications).
Q & A
- What is the operating frequency of the MCF52259CVN80 microcontroller?
The MCF52259CVN80 operates at up to 80 MHz).
- How much flash memory does the MCF52259CVN80 have?
The MCF52259CVN80 has up to 512 KB of flash memory).
- What types of USB interfaces does the MCF52259CVN80 support?
The MCF52259CVN80 supports USB OTG dual-mode host and device controller, compliant with USB 1.1 and 2.0).
- Does the MCF52259CVN80 have Ethernet capabilities?
Yes, it includes a Fast Ethernet controller (FEC) with 10/100 BaseT/TX capability).
- How many UARTs does the MCF52259CVN80 have?
The MCF52259CVN80 has three universal asynchronous/synchronous receiver/transmitters (UARTs)).
- What is the resolution of the ADC in the MCF52259CVN80?
The ADC has a 12-bit resolution with 8 analog input channels).
- Does the MCF52259CVN80 support CAN interface?
Yes, it includes a FlexCAN controller area network (CAN) module).
- What is the supply voltage range for the MCF52259CVN80?
The supply voltage range is 3V to 3.6V).
- Does the MCF52259CVN80 have cryptography acceleration capabilities?
Yes, it includes a Cryptography Acceleration Unit (CAU)).
- What package type is the MCF52259CVN80 available in?
The MCF52259CVN80 is available in a 144-pin LBGA package).
