Overview
The MC9S12XF512MLM is a high-performance microcontroller from NXP USA Inc., based on the S12X architecture. This device is designed to provide a cost-effective distributed control solution, particularly suited for satellite nodes and other complex control systems. It integrates various advanced features and peripherals, making it a robust choice for a wide range of applications.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller Family | S12X |
| Flash Program Memory | 512 KB |
| RAM Size | 32 KB x 8 |
| CPU Type | S12 CPU |
| Clock Speed | Up to 40 MHz |
| Communication Interfaces | FlexRay, CAN, SPI, SCI, I2C |
| Analog-to-Digital Converter (ADC) | 12-bit, 16 channels |
| Pulse Width Modulator (PWM) | With fault protection |

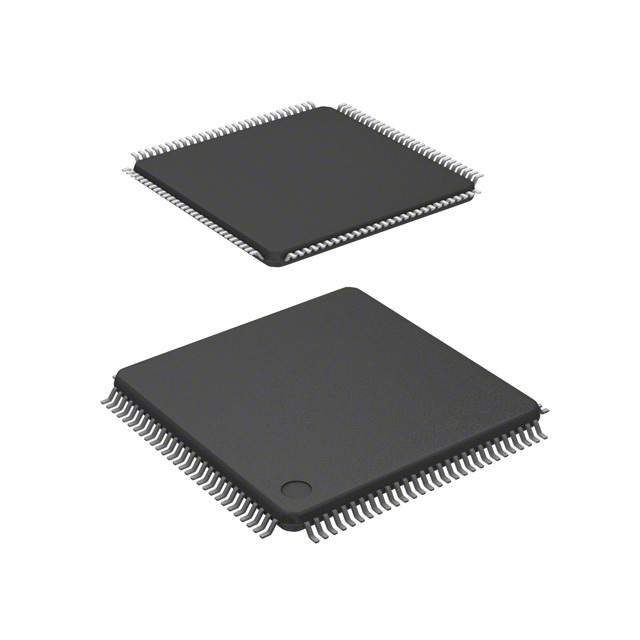

| Package Type | LQFP-112 |
Key Features
- High-performance S12 CPU with up to 40 MHz clock speed
- Integrated FlexRay communication controller for high-speed data transfer
- Scalable Controller Area Network (CAN) module
- Enhanced Programmable Interrupt Timer (EPIT) and Enhanced Capture Timer (ECT)
- Analog-to-Digital Converter (ADC) with 12-bit resolution and 16 channels
- Pulse Width Modulator (PWM) with fault protection
- Multiple serial communication interfaces including SPI, SCI, and I2C
- Advanced power management with low power modes
Applications
The MC9S12XF512MLM microcontroller is suitable for various applications requiring high-performance and advanced control capabilities, such as:
- Automotive control systems, including engine control, transmission control, and body control
- Industrial automation and control systems
- Medical devices requiring precise control and communication
- Aerospace and defense systems where reliability and performance are critical
- Complex distributed control systems in various industries
Q & A
- What is the microcontroller family of the MC9S12XF512MLM?
The MC9S12XF512MLM is based on the S12X architecture. - How much flash program memory does the MC9S12XF512MLM have?
The device has 512 KB of flash program memory. - What is the RAM size of the MC9S12XF512MLM?
The RAM size is 32 KB x 8. - What is the maximum clock speed of the MC9S12XF512MLM?
The maximum clock speed is up to 40 MHz. - Does the MC9S12XF512MLM support FlexRay communication?
Yes, it includes a FlexRay communication controller. - What types of serial communication interfaces are available on the MC9S12XF512MLM?
The device supports SPI, SCI, I2C, and CAN interfaces. - Does the MC9S12XF512MLM have an Analog-to-Digital Converter (ADC)?
Yes, it has a 12-bit ADC with 16 channels. - What is the package type of the MC9S12XF512MLM?
The package type is LQFP-112. - Is the MC9S12XF512MLM suitable for automotive applications?
Yes, it is commonly used in automotive control systems. - Does the MC9S12XF512MLM support low power modes?
Yes, it has advanced power management with low power modes.
