Overview
The MC908AZ60ACFUER528 is a member of the M68HC08 Family of 8-bit microcontroller units (MCUs) produced by NXP USA Inc. This microcontroller is designed to offer high performance and low cost, making it suitable for a variety of applications. It is part of the HC08/S08 series, known for its robust and versatile capabilities in embedded systems.
Key Specifications
| Specification | Details |
|---|---|
| Microcontroller Type | 8-bit MCU |
| Series | HC08/S08 |
| Part Number | MC908AZ60ACFUER528 |
| Manufacturer | NXP USA Inc. |
| Memory | 60 KB Flash, 2 KB RAM, 1 KB EEPROM |
| Input/Output Pins | Multiple ports including Port A, Port B, Port C, Port F, and Port G |
| Clock Speed | Up to 20 MHz |

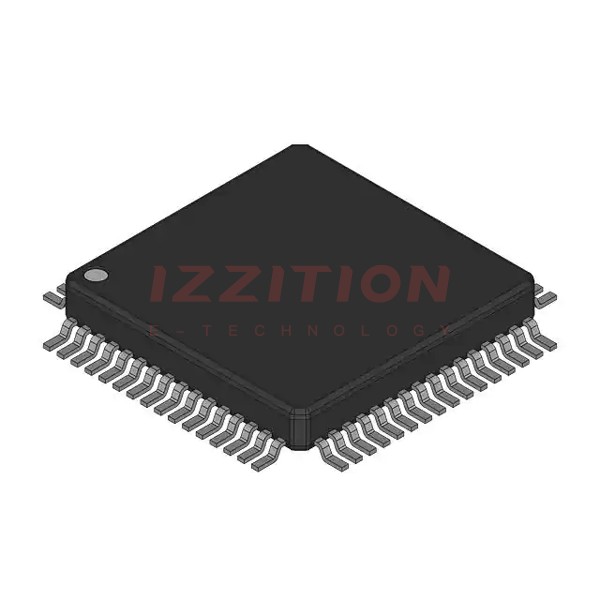

| Package Type | QFP-64 |
| Operating Temperature | -40°C to 85°C |
Key Features
- High Performance: The MC908AZ60ACFUER528 offers high performance with its 8-bit MCU architecture and up to 20 MHz clock speed.
- Low Power Consumption: Designed for low power consumption, making it suitable for battery-powered devices.
- Multiple I/O Ports: Includes several input/output ports (Port A, Port B, Port C, Port F, and Port G) for versatile connectivity options.
- On-Chip Memory: Features 60 KB of Flash memory, 2 KB of RAM, and 1 KB of EEPROM for robust storage and execution capabilities.
- Robust Embedded Capabilities: Supports various embedded system applications with its integrated peripherals and interfaces.
Applications
- Industrial Automation: Suitable for control systems, sensors, and actuators in industrial environments.
- Consumer Electronics: Used in various consumer devices such as appliances, remote controls, and gaming devices.
- Automotive Systems: Can be applied in automotive control systems, dashboard instruments, and other vehicle electronics.
- Medical Devices: Applicable in medical equipment and diagnostic devices due to its reliability and precision.
- IoT Devices: Ideal for Internet of Things (IoT) applications requiring low power and high performance.
Q & A
- What is the part number of this MCU?
The part number is MC908AZ60ACFUER528.
- Who is the manufacturer of this MCU?
The manufacturer is NXP USA Inc.
- What is the clock speed of this MCU?
The clock speed is up to 20 MHz.
- How much memory does this MCU have?
The MCU has 60 KB of Flash memory, 2 KB of RAM, and 1 KB of EEPROM.
- What are the operating temperature ranges for this MCU?
The operating temperature range is -40°C to 85°C.
- What types of applications is this MCU suitable for?
This MCU is suitable for industrial automation, consumer electronics, automotive systems, medical devices, and IoT devices.
- How many I/O ports does this MCU have?
The MCU includes multiple I/O ports such as Port A, Port B, Port C, Port F, and Port G.
- What is the package type of this MCU?
The package type is QFP-64.
- Where can I find detailed specifications for this MCU?
Detailed specifications can be found in the datasheet available on NXP's official website or through distributors like Digi-Key.
- Is this MCU designed for low power consumption?
