Overview
The MC908AB32CFUER is a 8-bit microcontroller from NXP USA Inc., part of the HC08 family. This microcontroller is designed for a wide range of applications requiring robust performance, low power consumption, and extensive peripheral support. It features a 32KB FLASH memory, 1KB of RAM, and 512 bytes of EEPROM, making it suitable for various embedded systems and industrial control applications.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 8-bit |
| FLASH Memory | 32KB (32K x 8) |
| RAM | 1KB |
| EEPROM | 512 bytes with security feature |

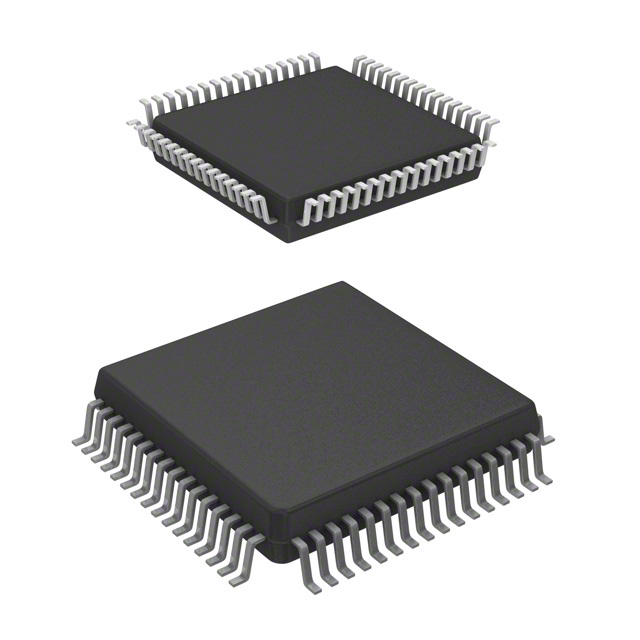

| Package Type | 64-QFP (Quad Flat Package) |
| Clock Generator Module | Yes |
| System Integration Module (SIM) | Yes |
| Timer Interface Module A (TIMA) | Yes |
| Input/Output Pins | Multiple ports (A, B, C, D, E, F, G) |
Key Features
- FLASH Memory: 32KB of on-chip FLASH memory for program storage.
- RAM and EEPROM: 1KB of RAM and 512 bytes of EEPROM with security features.
- Clock Generator Module (CGM): Provides flexible clocking options.
- System Integration Module (SIM): Manages system resources and peripherals.
- Timer Interface Module A (TIMA): Supports various timing and counting functions.
- Multiple I/O Ports: Includes several input/output ports (A, B, C, D, E, F, G) for extensive connectivity.
Applications
- Industrial Control Systems: Suitable for controlling and monitoring industrial processes.
- Embedded Systems: Ideal for various embedded applications requiring low power and robust performance.
- Automotive Systems: Can be used in automotive control units and sensors.
- Consumer Electronics: Applicable in consumer devices that require microcontroller functionality.
- Medical Devices: Used in medical equipment that needs precise control and low power consumption.
Q & A
- What is the type of microcontroller in the MC908AB32CFUER?
The MC908AB32CFUER is an 8-bit microcontroller.
- How much FLASH memory does the MC908AB32CFUER have?
The MC908AB32CFUER has 32KB of FLASH memory.
- What is the amount of RAM in the MC908AB32CFUER?
The MC908AB32CFUER has 1KB of RAM.
- Does the MC908AB32CFUER have EEPROM?
Yes, it has 512 bytes of EEPROM with security features.
- What is the package type of the MC908AB32CFUER?
The MC908AB32CFUER comes in a 64-QFP (Quad Flat Package).
- Does the MC908AB32CFUER have a Clock Generator Module?
Yes, it includes a Clock Generator Module (CGM).
- What are the primary applications of the MC908AB32CFUER?
The primary applications include industrial control systems, embedded systems, automotive systems, consumer electronics, and medical devices.
- How many input/output ports does the MC908AB32CFUER have?
The MC908AB32CFUER has multiple input/output ports (A, B, C, D, E, F, G).
- Is the MC908AB32CFUER suitable for low power applications?
Yes, it is designed for low power consumption, making it suitable for battery-powered devices.
- Where can I find detailed technical data for the MC908AB32CFUER?
Detailed technical data can be found in the datasheet available on NXP's official website and other authorized distributors like Digi-Key and Utmel Electronic.
