Overview

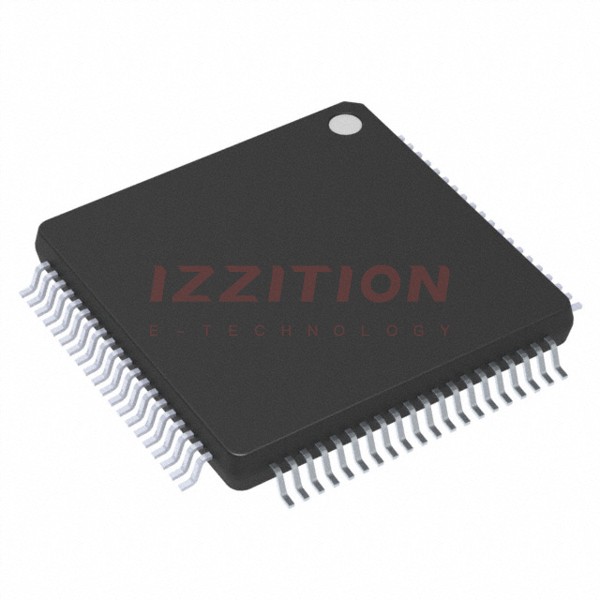

The MC56F84786VLK is a high-performance digital signal controller (DSC) produced by NXP USA Inc. It is part of the MC56F84xxx family, which is renowned for its exceptional precision, sensing, and control capabilities. This DSC is based on a 32-bit DSP core, making it ideal for applications requiring efficient digital power conversion and advanced motor control.
Key Specifications
| Parameter | Specification |
|---|---|
| Core Type | 32-bit DSP core |
| Clock Speed | 100 MHz |
| Flash Memory | 256 KB (256K x 8) |
| Package Type | 80-FQFP (12x12 mm) |
| Interfaces | USB FS OTG, CAN FD |
| Operating Voltage | Variety of voltage options, typically 3.0V to 3.6V |
Key Features
- High-speed and high-accuracy peripherals for advanced sensing and control.
- Exceptional precision and efficiency in digital power conversion and motor control applications.
- USB Full Speed On-The-Go (OTG) and CAN FD interfaces for enhanced communication capabilities.
- Support for various software and hardware development tools, including eCad files and partner solutions.
Applications
- Digital power conversion systems requiring high precision and efficiency.
- Advanced motor control applications, including industrial automation and robotics.
- Automotive systems, such as engine control units and electric vehicle control systems.
- Industrial control systems, including process control and automation.
Q & A
- What is the core type of the MC56F84786VLK? The MC56F84786VLK is based on a 32-bit DSP core.
- What is the maximum clock speed of the MC56F84786VLK? The maximum clock speed is 100 MHz.
- How much flash memory does the MC56F84786VLK have? It has 256 KB of flash memory.
- What type of package does the MC56F84786VLK come in? It comes in an 80-FQFP package.
- What interfaces are supported by the MC56F84786VLK? It supports USB Full Speed On-The-Go (OTG) and CAN FD interfaces.
- What are the typical operating voltage ranges for the MC56F84786VLK? The typical operating voltage ranges are from 3.0V to 3.6V.
- What are some common applications of the MC56F84786VLK? Common applications include digital power conversion, advanced motor control, automotive systems, and industrial control systems.
- Does the MC56F84786VLK support any specific development tools? Yes, it supports various software and hardware development tools, including eCad files and partner solutions.
- Where can I find detailed documentation for the MC56F84786VLK? Detailed documentation can be found on the NXP Semiconductors website and through other authorized distributors.
- Is the MC56F84786VLK RoHS compliant? Yes, the MC56F84786VLK is RoHS compliant.
