Overview
The MC56F8345VFGE is a 16-bit digital signal controller (DSC) from NXP Semiconductors, part of their 56F8000 series. This device belongs to the 56800E core-based DSC family, combining the capabilities of digital signal processing and microcontroller functionalities. It is designed to provide high-performance processing for a variety of applications requiring both control and signal processing tasks.
Key Specifications
| Parameter | Value |
|---|---|
| Core | 56800E |
| Bit Width | 16-bit |
| Flash Memory | 128KB (64K x 16) |

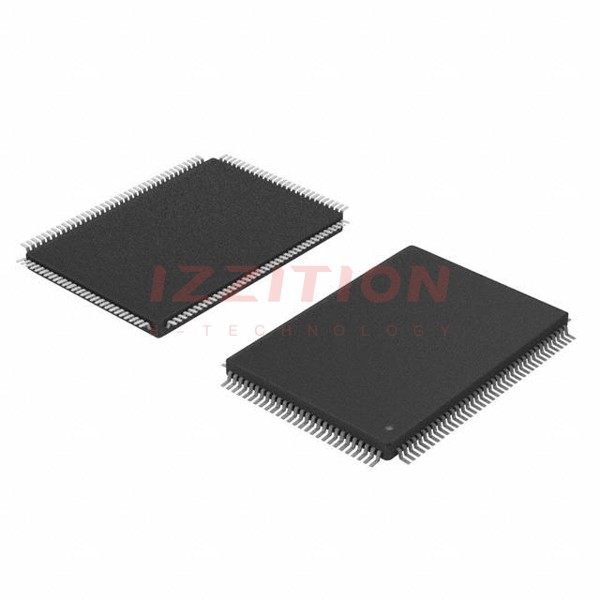

| Package Type | 128-LQFP |
| Operating Voltage | 3.0V to 3.6V |
| Operating Temperature | -40°C to 125°C |
Key Features
- High-performance 56800E core with a maximum clock speed of up to 60 MHz.
- 128KB of flash memory and 24KB of RAM.
- Integrated peripherals including timers, PWM modules, and communication interfaces such as SPI, SCI, and CAN.
- Advanced signal processing capabilities with a 16-bit multiply-accumulate (MAC) unit.
- Low power consumption with various power-saving modes.
Applications
The MC56F8345VFGE is suitable for a wide range of applications that require both digital signal processing and microcontroller functionalities. These include:
- Industrial control systems.
- Automotive systems, such as engine control and safety systems.
- Medical devices, including diagnostic equipment and patient monitoring systems.
- Aerospace and defense applications requiring high reliability and performance.
- Consumer electronics, such as audio and video processing devices.
Q & A
- What is the core type of the MC56F8345VFGE?
The MC56F8345VFGE is based on the 56800E core. - What is the bit width of the MC56F8345VFGE?
The MC56F8345VFGE is a 16-bit digital signal controller. - How much flash memory does the MC56F8345VFGE have?
The MC56F8345VFGE has 128KB of flash memory. - What is the package type of the MC56F8345VFGE?
The MC56F8345VFGE comes in a 128-LQFP package. - What are the operating voltage and temperature ranges for the MC56F8345VFGE?
The operating voltage range is 3.0V to 3.6V, and the operating temperature range is -40°C to 125°C. - What are some of the integrated peripherals of the MC56F8345VFGE?
The device includes timers, PWM modules, SPI, SCI, and CAN interfaces. - What are some typical applications of the MC56F8345VFGE?
Typical applications include industrial control systems, automotive systems, medical devices, aerospace and defense, and consumer electronics. - Does the MC56F8345VFGE support low power modes?
Yes, the MC56F8345VFGE has various power-saving modes to reduce power consumption. - Where can I find detailed specifications for the MC56F8345VFGE?
Detailed specifications can be found in the datasheet available on NXP's official website and other electronic component distributors like Digi-Key and Mouser. - What is the maximum clock speed of the MC56F8345VFGE?
The maximum clock speed of the MC56F8345VFGE is up to 60 MHz.
