Overview
The LPC802M001JDH20J is a 32-bit microcontroller from NXP USA Inc., part of the LPC800 family. It is based on the ARM Cortex-M0+ core, which operates at frequencies up to 15 MHz. This low-cost, entry-level MCU is designed for a variety of applications requiring efficient processing and low power consumption.
Key Specifications
| Specification | Details |
|---|---|
| Processor Core | ARM Cortex-M0+ |
| Operating Frequency | Up to 15 MHz |
| Flash Memory | 16 KB |
| SRAM | 2 KB |

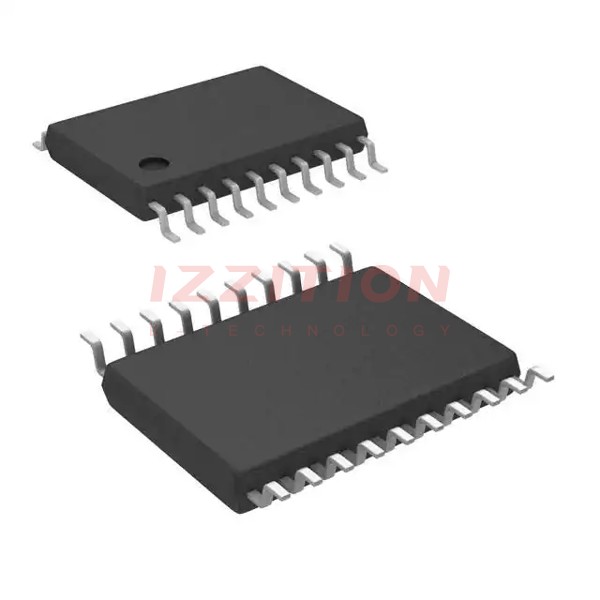

| Package Type | TSSOP20 |
| Supply Voltage | 1.71 V to 3.6 V |
| Operating Temperature | -40 °C to +105 °C |
| Peripheral Interfaces | I2C, up to two USARTs, SPI, multi-rate timer, self-wake-up timer, 12-bit ADC, analog comparator |
| General Purpose I/O Pins | Up to 17 |
Key Features
- ARM Cortex-M0+ Processor: With a single-cycle multiplier and fast single-cycle I/O port access.
- Memory: 16 KB of on-chip EEPROM-based flash programming memory and 2 KB of SRAM.
- Peripheral Complement: Includes one I2C-bus interface, up to two USARTs, one SPI interface, one multi-rate timer, self-wake-up timer, one general-purpose 32-bit counter/timer, one 12-bit ADC, and one analog comparator.
- Switch Matrix: Allows function-configurable I/O ports and level-shifting signals between different voltage domains.
- Debugging: Supports Serial Wire Debug (SWD) with four breakpoints and two watchpoints, and JTAG boundary scan.
- ROM API Support: Includes boot loader and Flash In-Application Programming (IAP).
- Unique Device Serial Number: For device identification.
Applications
- Sensor gateways
- Simple motor control
- Industrial applications
- Portables and wearables
- Gaming controllers
- Lighting control
- 8/16-bit applications
- Motor control
- Consumer electronics
- Fire and security applications
- Climate control systems
Q & A
- What is the processor core of the LPC802M001JDH20J?
The processor core is the ARM Cortex-M0+.
- What is the maximum operating frequency of the LPC802M001JDH20J?
The maximum operating frequency is up to 15 MHz.
- How much flash memory and SRAM does the LPC802M001JDH20J have?
The LPC802M001JDH20J has 16 KB of flash memory and 2 KB of SRAM.
- What types of peripheral interfaces are supported by the LPC802M001JDH20J?
The LPC802M001JDH20J supports I2C, up to two USARTs, SPI, multi-rate timer, self-wake-up timer, 12-bit ADC, and analog comparator.
- What is the operating temperature range of the LPC802M001JDH20J?
The operating temperature range is -40 °C to +105 °C.
- What package types are available for the LPC802M001JDH20J?
The LPC802M001JDH20J is available in TSSOP20, among other package types.
- Does the LPC802M001JDH20J support dual power supplies?
Yes, it supports single or dual power supplies (1.71 V to 3.6 V).
- What debugging features are supported by the LPC802M001JDH20J?
The LPC802M001JDH20J supports Serial Wire Debug (SWD) and JTAG boundary scan.
- What are some common applications of the LPC802M001JDH20J?
Common applications include sensor gateways, simple motor control, industrial applications, portables and wearables, and more.
- Does the LPC802M001JDH20J have a unique device serial number?
Yes, it has a unique device serial number for identification.
