Overview
The LPC55S69JBD100Y from NXP Semiconductors is a powerful microcontroller unit designed for secure edge computing applications. It features a dual-core ARM Cortex-M33 configuration, offering parallel processing and improved real-time performance. This MCU is part of the LPC5500 series, which enhances efficiency and signal processing while maintaining a rich set of security features.
Key Specifications
| Parameter | Value |
|---|---|
| Family Name | LPC55S6x |
| Core Processor | ARM Cortex-M33 |
| Program Memory Type | Flash |
| Flash Size | 640 KB |
| RAM Size | 320 KB (288 KB on system bus, 32 KB on core bus) |
| Speed | Up to 150 MHz |
| No of I/O Lines | 64 |
| Interface/Connectivity | I2C, I2S, SPI, USART |
| Peripherals | Brownout Reset, Brown-out Detect, I2S, POR, PWM |
| Number Of Timers | 5 |
| Supply Voltage | 1.8 V to 3.6 V |
| Operating Temperature | -40°C to +105°C |
| On-Chip ADC | 10-ch x 16-bit |

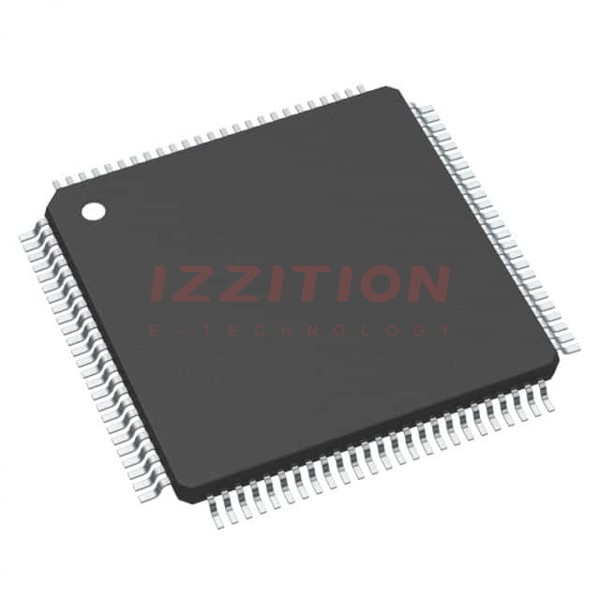

| Package Style | HLQFP-100 |
| Mounting Method | Surface Mount |
Key Features
- Up to 640 KB of Flash program memory and up to 320 KB of SRAM.
- 1 Msample/s, 16-bit ADC with five differential channel pairs or ten single-ended channels.
- Integrated temperature sensor and comparator with five input pins.
- Supports secure boot and secure on-chip flash encryption/decryption via the PRINCE module.
- Includes a CASPER Crypto/FFT engine and PowerQuad hardware accelerator for DSP functions.
- High-speed and full-speed USB host and device interface with crystal-less operation for full-speed.
- SD/MMC/SDIO interface and nine flexible serial communication peripherals.
- TrustZone®, Floating Point Unit (FPU), and Memory Protection Unit (MPU).
- ARM Cortex M33 built-in Nested Vectored Interrupt Controller (NVIC) and Non-maskable Interrupt (NMI) input.
Applications
- Building control and automation.
- Consumer electronics.
- Diagnostic equipment.
- Industrial IoT.
- Machine learning.
- Security applications.
- Industrial automation.
- Smart home products.
Q & A
- Q: What is the LPC55S69JBD100Y microcontroller?
A: The LPC55S69JBD100Y is a microcontroller from NXP Semiconductors, featuring a dual-core ARM Cortex-M33 configuration for secure edge computing applications. - Q: What are the key memory specifications of the LPC55S69JBD100Y?
A: It has up to 640 KB of Flash program memory and up to 320 KB of SRAM. - Q: What are the operating voltage and temperature ranges of the LPC55S69JBD100Y?
A: The operating voltage range is 1.8 V to 3.6 V, and the operating temperature range is -40°C to +105°C. - Q: What types of interfaces and peripherals does the LPC55S69JBD100Y support?
A: It supports I2C, I2S, SPI, USART, and includes peripherals such as Brownout Reset, Brown-out Detect, I2S, POR, PWM, and more. - Q: Is the LPC55S69JBD100Y suitable for secure applications?
A: Yes, it includes features like secure boot, on-chip flash encryption/decryption via the PRINCE module, and TrustZone® for enhanced security. - Q: How can I order the LPC55S69JBD100Y?
A: You can order the LPC55S69JBD100Y through authorized distributors like Future Electronics, Ovaga, or directly from NXP's website by selecting the product and proceeding to the checkout. - Q: What is the warranty period for the LPC55S69JBD100Y?
A: The warranty period varies by distributor, but Ovaga offers a 1-year warranty for this product. - Q: How can I find detailed information about the LPC55S69JBD100Y?
A: Detailed information can be found in the datasheet available on NXP's website or through authorized distributors like Ovaga. - Q: What are the packaging options for the LPC55S69JBD100Y?
A: The LPC55S69JBD100Y is available in HLQFP-100, HTQFP64, and VFBGA98 packages. - Q: What is the maximum CPU frequency of the LPC55S69JBD100Y?
A: The maximum CPU frequency is up to 150 MHz for device revision 1B.
