Overview
The LPC54607J256BD208551 is a 32-bit microcontroller from NXP USA Inc., part of the LPC546xx family. It is built around the ARM Cortex-M4 core, which offers advanced features such as low power consumption, enhanced debug capabilities, and a Floating Point Unit (FPU). This microcontroller is designed for a wide range of applications requiring high performance, low power, and extensive peripheral support.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | LPC54607J256BD208551 |
| Core | ARM Cortex-M4 |
| Maximum CPU Frequency | 180 MHz |
| Program Memory | 256 KB |

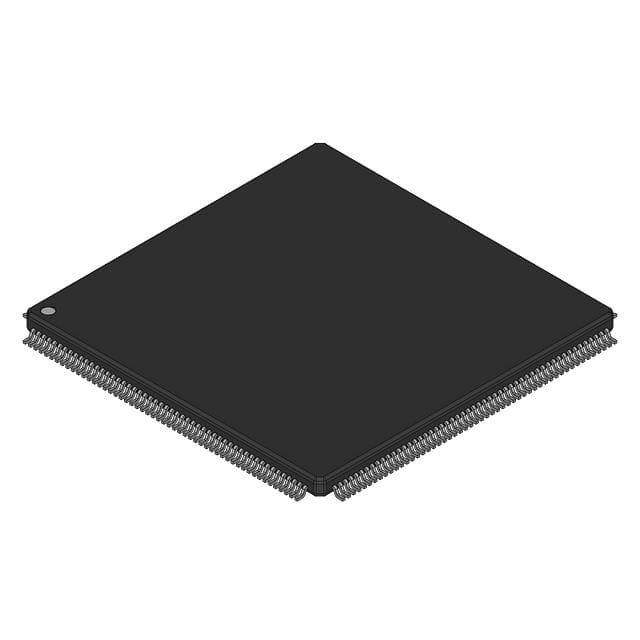

| Package Type | LQFP-208 (28x28 mm) |
| GPIO Pins | Up to 171 |
| Analog Peripherals | 12-bit ADC with 12 input channels |
| Communication Interfaces | I²C, SPI, UART/USART, USB, CAN FD, Ethernet |
| Other Features | DMA, I²S, LCD, Brown-out Detect/Reset, PWM, WDT |
Key Features
- ARM Cortex-M4 Core: Supports up to 180 MHz frequency with FPU and MPU.
- Memory and Storage: 256 KB program memory, 64 KB boot ROM, and various SRAM configurations.
- Peripheral Support: Includes LCD controller, SD/MMC interface, CAN FD, Ethernet, HS/FS USB, and multiple serial communication peripherals (USART, SPI, I2S, I2C).
- Analog Peripherals: 12-bit ADC with 12 input channels and a temperature sensor.
- GPIO and Interrupts: Up to 171 GPIO pins with fast access via AHB, and support for Pin Interrupts (PINT) and Grouped Interrupts (GINT).
- Security and Debugging: Secure digital input/output (SD/MMC and SDIO) with DMA support, CRC engine, and enhanced debug features.
Applications
The LPC54607J256BD208551 is suitable for a variety of applications, including:
- Industrial Automation: With its support for Ethernet, CAN FD, and other industrial communication protocols.
- Consumer Electronics: Utilizing its LCD controller, USB, and audio interfaces.
- Medical Devices: Leveraging its low power consumption and advanced analog peripherals.
- Automotive Systems: Benefiting from its robust peripheral set and high reliability.
Q & A
- What is the core architecture of the LPC54607J256BD208551?
The LPC54607J256BD208551 is based on the ARM Cortex-M4 core. - What is the maximum CPU frequency of this microcontroller?
The maximum CPU frequency is 180 MHz. - How much program memory does this microcontroller have?
The program memory is 256 KB. - What type of package does this microcontroller come in?
The package type is LQFP-208 (28x28 mm). - What are the key communication interfaces supported by this microcontroller?
The key communication interfaces include I²C, SPI, UART/USART, USB, CAN FD, and Ethernet. - Does this microcontroller support any analog peripherals?
Yes, it includes a 12-bit ADC with 12 input channels and a temperature sensor. - How many GPIO pins does this microcontroller have?
It has up to 171 GPIO pins. - What security features are available on this microcontroller?
It includes secure digital input/output (SD/MMC and SDIO) with DMA support and a CRC engine. - What are some typical applications for this microcontroller?
Typical applications include industrial automation, consumer electronics, medical devices, and automotive systems. - Does this microcontroller support any debugging features?
Yes, it includes enhanced debug features and a JTAG test and boundary scan interface.
