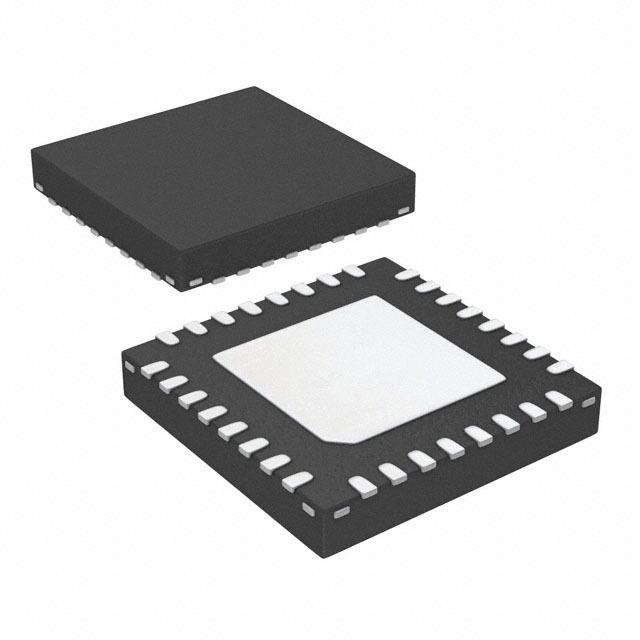

LPC1111FHN33/101551
  • Share:

NXP USA Inc. LPC1111FHN33/101551

Manufacturer No:
LPC1111FHN33/101551
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
IC MCU 32BIT 8KB FLASH 32HVQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LPC1111FHN33/101551 is a 32-bit microcontroller from NXP USA Inc., part of the LPC11xx MCU Family. This microcontroller is based on the Arm Cortex-M0 architecture and is designed for low-cost, high-performance applications. It operates at CPU frequencies of up to 50 MHz, making it suitable for a variety of data-intensive environments.

Key Specifications

SpecificationValue
Microcontroller FamilyLPC11xx
ArchitectureArm Cortex-M0
Maximum CPU FrequencyUp to 50 MHz
Flash Memory8 KB
Package Type32-pin HVQFN
RAM4 KB
PeripheralsUART, SPI, I2C, GPIO, etc.
Operating Voltage1.8V to 3.6V

Key Features

  • Low power consumption and high performance
  • Advanced B memory and high-speed processing capabilities
  • Multiple peripherals including UART, SPI, I2C, and GPIO
  • Operating voltage range of 1.8V to 3.6V
  • Compact 32-pin HVQFN package

Applications

The LPC1111FHN33/101551 is versatile and can be used in various applications such as:

  • Industrial control systems
  • Consumer electronics
  • Medical devices
  • Automotive systems
  • IoT devices

Q & A

  1. What is the architecture of the LPC1111FHN33/101551 microcontroller?
    The LPC1111FHN33/101551 is based on the Arm Cortex-M0 architecture.
  2. What is the maximum CPU frequency of the LPC1111FHN33/101551?
    The maximum CPU frequency is up to 50 MHz.
  3. How much flash memory does the LPC1111FHN33/101551 have?
    The LPC1111FHN33/101551 has 8 KB of flash memory.
  4. What is the package type of the LPC1111FHN33/101551?
    The package type is 32-pin HVQFN.
  5. What are the operating voltage ranges for the LPC1111FHN33/101551?
    The operating voltage range is from 1.8V to 3.6V.
  6. What peripherals are available on the LPC1111FHN33/101551?
    The microcontroller includes peripherals such as UART, SPI, I2C, and GPIO.
  7. Is the LPC1111FHN33/101551 suitable for low-power applications?
    Yes, it is designed for low power consumption.
  8. Can the LPC1111FHN33/101551 be used in industrial control systems?
    Yes, it is suitable for industrial control systems among other applications.
  9. Where can I find detailed datasheets for the LPC1111FHN33/101551?
    Detailed datasheets can be found on the NXP Semiconductors website or through distributors like Avnet and LoveChip.
  10. What is the typical price range for the LPC1111FHN33/101551?
    The price range is typically between $1.23 to $1.30, depending on the supplier and quantity.

Product Attributes

Core Processor:ARM® Cortex®-M0
Core Size:32-Bit Single-Core
Speed:50MHz
Connectivity:I²C, SPI, UART/USART
Peripherals:Brown-out Detect/Reset, POR, WDT
Number of I/O:28
Program Memory Size:8KB (8K x 8)
Program Memory Type:Flash
EEPROM Size:-
RAM Size:2K x 8
Voltage - Supply (Vcc/Vdd):1.8V ~ 3.6V
Data Converters:A/D 8x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:32-VQFN Exposed Pad
Supplier Device Package:32-HVQFN (7x7)
0 Remaining View Similar

In Stock

-
355

Please send RFQ , we will respond immediately.
