Overview
The LPC1111FDH20/002,5 is a 32-bit microcontroller from NXP USA Inc., part of the LPC11xx MCU family. This microcontroller is designed to bridge the gap between 8/16-bit microcontrollers, offering enhanced performance, low power consumption, and a simple instruction set that reduces code size. It is based on the Arm Cortex-M0 processor, which provides efficient processing capabilities.
Key Specifications
| Parameter | Value |
|---|---|
| Core Type | Arm Cortex-M0 |
| Operating Frequency [Max] | 50 MHz |
| Flash Memory | 8 kB |
| SRAM | 4 kB |

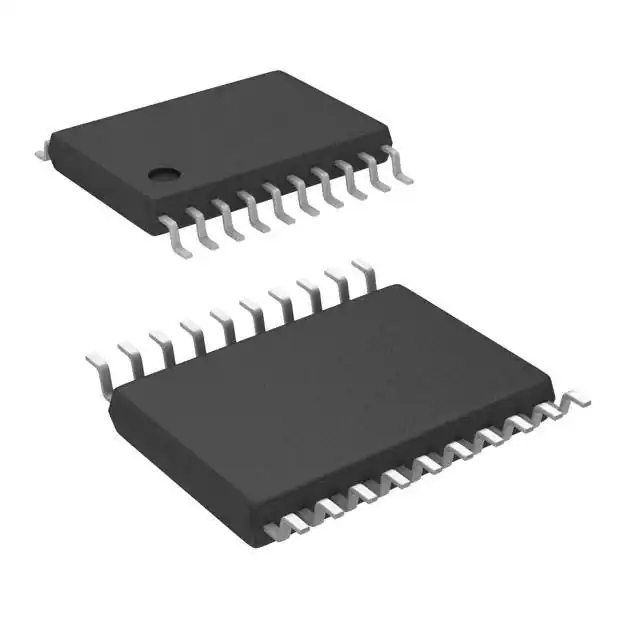

| Package Type | 20-TSSOP |
| Interrupt Controller | Nested Vectored Interrupt Controller (NVIC) |
Key Features
- Arm Cortex-M0 processor with up to 50 MHz operating frequency
- Low power consumption, making it suitable for battery-powered devices
- Simple instruction set with reduced code size
- Integrated Nested Vectored Interrupt Controller (NVIC)
- Compact 20-TSSOP package
Applications
The LPC1111FDH20/002,5 is versatile and can be used in a variety of applications, including:
- Industrial control systems
- Consumer electronics
- Medical devices
- Automotive systems
- IoT devices
Q & A
- What is the core type of the LPC1111FDH20/002,5 microcontroller?
The core type is Arm Cortex-M0. - What is the maximum operating frequency of the LPC1111FDH20/002,5?
The maximum operating frequency is 50 MHz. - How much flash memory does the LPC1111FDH20/002,5 have?
The LPC1111FDH20/002,5 has 8 kB of flash memory. - What is the package type of the LPC1111FDH20/002,5?
The package type is 20-TSSOP. - Does the LPC1111FDH20/002,5 have an integrated interrupt controller?
Yes, it has a Nested Vectored Interrupt Controller (NVIC). - What are some typical applications for the LPC1111FDH20/002,5?
Typical applications include industrial control systems, consumer electronics, medical devices, automotive systems, and IoT devices. - How much SRAM does the LPC1111FDH20/002,5 have?
The LPC1111FDH20/002,5 has 4 kB of SRAM. - Is the LPC1111FDH20/002,5 suitable for low power applications?
Yes, it is designed for low power consumption. - What is the instruction set architecture of the LPC1111FDH20/002,5?
The instruction set architecture is based on the Arm Cortex-M0 processor. - Where can I find design files and symbols for the LPC1111FDH20/002,5?
Design files, symbols, and footprints can be found on the NXP website and other electronic component databases.
