Overview
The IP4284CZ10-TBR is an ElectroStatic Discharge (ESD) protection device designed by NXP USA Inc., now part of Nexperia. This component is specifically engineered to protect high-speed interfaces from ESD damage. It is suitable for use in various electronic devices that require robust protection against transient voltage surges.

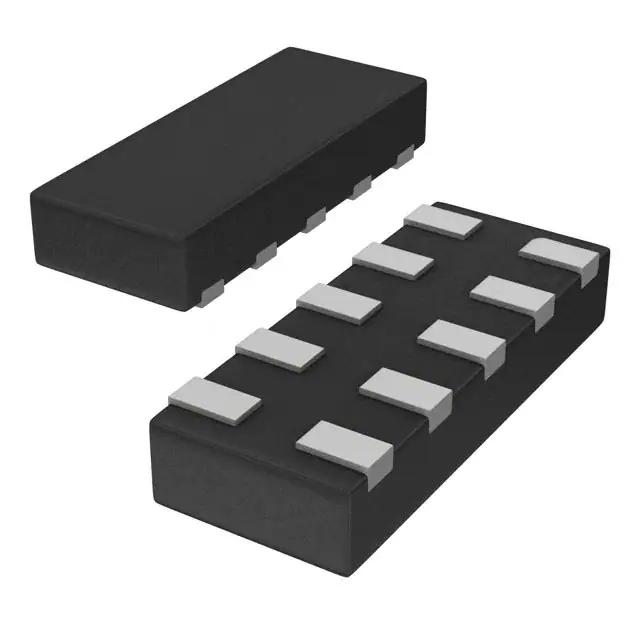

The device is available in two package variants: XSON10 (DFN2510A-10) and TSSOP10, making it versatile for different design requirements. Although the device is currently marked as obsolete, it remains relevant for understanding ESD protection in high-speed interfaces.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. (now Nexperia) |
| Package | XSON10 (DFN2510A-10), TSSOP10 |
| Reverse Standoff Voltage (Typ) | 5.5V |
| Clamping Voltage (Max) @ Ipp | 9.5V |
| Breakdown Voltage (Min) | 6V |
| Unidirectional Channels | 4 |
| Line Capacitance | 0.5 pF per channel |
| Matching Capacitance between Signal Pairs | ≤ 0.05 pF |
| Operating Temperature | -40°C to 85°C |
| ESD Protection Level | ±8 kV according to IEC 61000-4-2, level 4 |
Key Features
- Pb-free, RoHS compliant, and free of halogen and antimony (Dark Green compliant)
- System ESD protection for USB 2.0, USB SuperSpeed 3.0, HDMI 1.3 and 1.4, DisplayPort, eSATA, and LVDS interfaces
- All signal lines protected by integrated rail-to-rail clamping diodes for downstream ESD protection of ±8 kV according to IEC 61000-4-2, level 4
- Ultra low line capacitance of 0.5 pF per channel
- Matched 0.5 mm trace spacing and ≤ 0.05 pF matching capacitance between signal pairs
- Design-friendly ‘pass-thru’ signal routing
Applications
- TVs and monitors
- DVD recorders and players
- Notebooks, motherboards, graphic cards, and ports
- Set-top boxes and game consoles
Q & A
- What is the primary function of the IP4284CZ10-TBR?
The primary function of the IP4284CZ10-TBR is to provide ESD protection for ultra high-speed interfaces such as HDMI, DisplayPort, USB, eSATA, and LVDS.
- What are the package options for the IP4284CZ10-TBR?
The device is available in XSON10 (DFN2510A-10) and TSSOP10 packages.
- What is the ESD protection level of the IP4284CZ10-TBR?
The device provides ESD protection up to ±8 kV according to IEC 61000-4-2, level 4.
- What is the line capacitance of the IP4284CZ10-TBR?
The line capacitance is 0.5 pF per channel.
- Is the IP4284CZ10-TBR RoHS compliant?
Yes, the device is Pb-free, RoHS compliant, and free of halogen and antimony (Dark Green compliant).
- What are the typical applications for the IP4284CZ10-TBR?
Typical applications include TVs, monitors, DVD recorders and players, notebooks, motherboards, graphic cards, set-top boxes, and game consoles.
- What is the operating temperature range of the IP4284CZ10-TBR?
The operating temperature range is -40°C to 85°C.
- Is the IP4284CZ10-TBR still in production?
No, the device is currently marked as obsolete.
- How many unidirectional channels does the IP4284CZ10-TBR have?
The device has 4 unidirectional channels.
- What is the reverse standoff voltage of the IP4284CZ10-TBR?
The reverse standoff voltage is 5.5V.
