Overview
The IP4280CZ10,118 is an ElectroStatic Discharge (ESD) protection diode designed by NXP USA Inc. for protecting HDMI interfaces. Although this component is now obsolete and no longer manufactured, it was specifically engineered to safeguard the TMDS (Transition-Minimized Differential Signaling) signal lines in HDMI applications. The device features high-level ESD protection, ensuring the integrity of downstream components against ESD voltages up to ±8 kV according to the IEC 61000-4-2, level 4 standard.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | IP4280CZ10 |

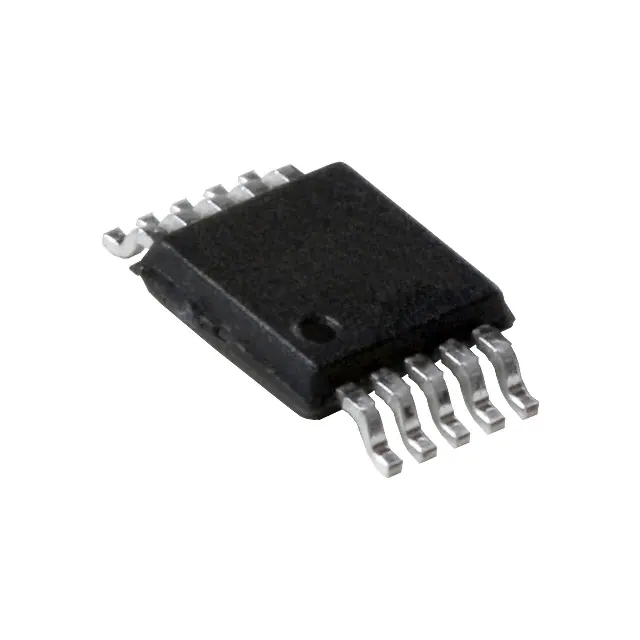

| Package Name | TSSOP10 (SOT552-1) |
| Voltage - Breakdown (Min) | 6 V |
| Voltage - Clamping (Max) @ Ipp | 8 V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5.5 V |
| Current - Peak Pulse (10/1000µs) | - |
| Line Capacitance | 0.7 pF per channel |
| Operating Temperature | - |
| ESD Protection Level | ±8 kV according to IEC 61000-4-2, level 4 |
Key Features
- Pb-free and RoHS compliant, Dark Green
- ESD protection for HDMI interfaces with integrated rail-to-rail clamping diodes
- Downstream ESD protection of ±8 kV according to IEC 61000-4-2, level 4 standard
- Matched 0.5 mm trace spacing
- TMDS lines with ≤ 0.05 pF matching of capacitance between the TMDS pairs
- Low line capacitance of only 0.7 pF per channel
- 4-channel TSSOP10 lead-free package
- HDMI 1.3 compliant
Applications
- HDMI receiver and transmitter port protection in devices such as TVs and monitors
- Notebooks and mainboard graphics cards and ports
- Set-top boxes and game consoles
- DVD recorders and players
Q & A
- What is the primary function of the IP4280CZ10,118?
The primary function of the IP4280CZ10,118 is to provide ElectroStatic Discharge (ESD) protection for HDMI interfaces, specifically protecting the TMDS signal lines.
- What is the ESD protection level of the IP4280CZ10,118?
The IP4280CZ10,118 offers ESD protection up to ±8 kV according to the IEC 61000-4-2, level 4 standard.
- What type of package does the IP4280CZ10,118 come in?
The IP4280CZ10,118 comes in a TSSOP10 (SOT552-1) package.
- Is the IP4280CZ10,118 Pb-free and RoHS compliant?
Yes, the IP4280CZ10,118 is Pb-free and RoHS compliant, and it is marked as Dark Green.
- What is the line capacitance of the IP4280CZ10,118?
The line capacitance of the IP4280CZ10,118 is only 0.7 pF per channel.
- Is the IP4280CZ10,118 still in production?
No, the IP4280CZ10,118 is obsolete and no longer manufactured.
- What are some common applications of the IP4280CZ10,118?
Common applications include HDMI receiver and transmitter port protection in TVs, monitors, notebooks, mainboard graphics cards, set-top boxes, game consoles, and DVD recorders and players.
- What is the voltage breakdown minimum for the IP4280CZ10,118?
The voltage breakdown minimum for the IP4280CZ10,118 is 6 V.
- Is the IP4280CZ10,118 compliant with HDMI standards?
Yes, the IP4280CZ10,118 is HDMI 1.3 compliant.
- What is the typical reverse standoff voltage for the IP4280CZ10,118?
The typical reverse standoff voltage for the IP4280CZ10,118 is 5.5 V.
