Overview
The HEF4067BT-Q100118, produced by NXP USA Inc., is a single-pole 16-throw analog switch (SP16T) designed for use in analog or digital 16:1 multiplexer/demultiplexer applications. This component is part of the HEF4000 family and is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 3), making it suitable for automotive and other demanding environments. It operates over a wide supply voltage range from 3.0 V to 15.0 V and features low power dissipation, high noise immunity, and fully static operation.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | HEF4067BT-Q100 |

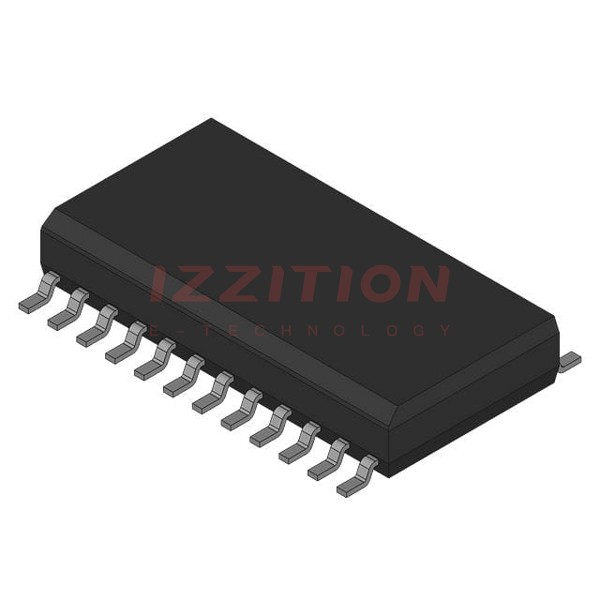

| Package | SO24 (SOT137-1) |
| Number of Channels | 16 |
| Supply Voltage Range | 3.0 V to 15.0 V |
| Operating Temperature Range | -40 °C to +85 °C |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
| Compliance | RoHS, REACH, ELV, CN RoHS |
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 3)
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Fully static operation
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13-B
- ESD protection: HBM and CDM compliant
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
- Automotive applications due to AEC-Q100 qualification
Q & A
- What is the HEF4067BT-Q100118 used for?
The HEF4067BT-Q100118 is used for analog or digital 16:1 multiplexer/demultiplexer applications.
- What is the operating temperature range of the HEF4067BT-Q100118?
The operating temperature range is from -40 °C to +85 °C.
- What is the supply voltage range of the HEF4067BT-Q100118?
The supply voltage range is from 3.0 V to 15.0 V.
- Is the HEF4067BT-Q100118 compliant with automotive standards?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 3).
- What type of ESD protection does the HEF4067BT-Q100118 have?
It has HBM and CDM ESD protection exceeding 2000 V and 1000 V respectively.
- What package type does the HEF4067BT-Q100118 come in?
It comes in an SO24 (SOT137-1) package.
- Is the HEF4067BT-Q100118 RoHS compliant?
Yes, it is compliant with RoHS, REACH, ELV, and CN RoHS.
- What are the key features of the HEF4067BT-Q100118?
Key features include low power dissipation, high noise immunity, fully static operation, and standardized symmetrical output characteristics.
- Can the HEF4067BT-Q100118 be used in digital applications?
Yes, it can be used in both analog and digital multiplexing and demultiplexing applications.
- Where can I find detailed specifications for the HEF4067BT-Q100118?
Detailed specifications can be found in the product datasheet available on the manufacturer's website or through authorized distributors.
