Overview
The HEF4066BT-Q100118 is a quad single-pole single-throw (SPST) analog switch produced by NXP USA Inc. This component is part of the HEF4000 family and is designed for use in a variety of analog and digital switching applications. It is known for its low power dissipation, high noise immunity, and fully static operation, making it suitable for a wide range of electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | HEF4066BT |
| Configuration | SPST-NO |
| VCC (V) | 3.0 - 15 |
| Logic Switching Levels | CMOS |
| RON (Ω) | 175 |
| RON(FLAT) (Ω) | 20 |
| f (-3dB) (MHz) | 90 |
| THD (%) | 0.04 |
| Xtalk (dB) | -50 |
| Power Dissipation Considerations | Very Low |
| Tamb (°C) | -40 ~ 125 |

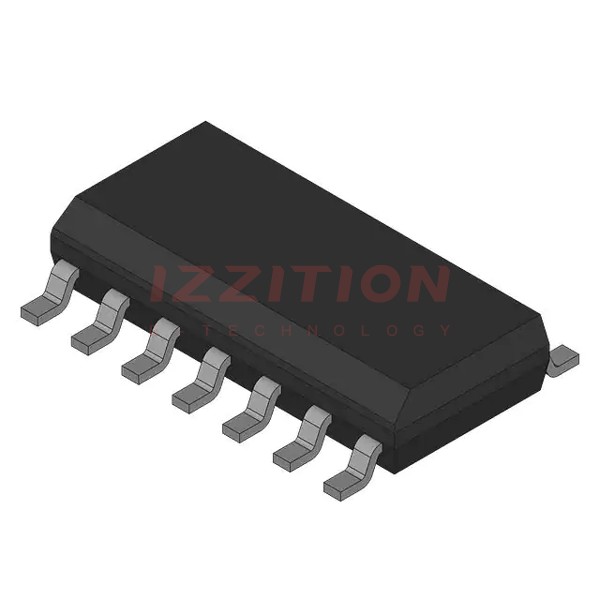

| Package Name | SO14 (SOT108-1) |
Key Features
- Quad single-pole single-throw (SPST) analog switch.
- Wide supply voltage range from 3.0 V to 15.0 V.
- CMOS low power dissipation.
- High noise immunity.
- Fully static operation.
- Inputs include clamp diodes for voltage protection.
- Complies with JEDEC standard JESD 13-B.
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2) exceeds 2000 V, CDM (ANSI/ESDA/JEDEC JS-002 class C3) exceeds 1000 V.
- Operating temperature range from -40°C to +125°C.
Applications
- Analog multiplexing and demultiplexing.
- Digital multiplexing and demultiplexing.
- Signal gating.
- Audio and video switching.
- Telecommunication systems.
- Industrial control systems.
Q & A
- What is the HEF4066BT-Q100118?
The HEF4066BT-Q100118 is a quad single-pole single-throw (SPST) analog switch produced by NXP USA Inc.
- What is the supply voltage range of the HEF4066BT-Q100118?
The supply voltage range is from 3.0 V to 15.0 V.
- What are the key features of the HEF4066BT-Q100118?
Key features include CMOS low power dissipation, high noise immunity, fully static operation, and ESD protection.
- What is the operating temperature range of the HEF4066BT-Q100118?
The operating temperature range is from -40°C to +125°C.
- What types of applications is the HEF4066BT-Q100118 suitable for?
Suitable applications include analog and digital multiplexing, signal gating, audio and video switching, and telecommunication systems.
- Does the HEF4066BT-Q100118 have ESD protection?
- What package type does the HEF4066BT-Q100118 come in?
The component comes in an SO14 (SOT108-1) package.
- Is the HEF4066BT-Q100118 RoHS compliant?
- How many switches are included in the HEF4066BT-Q100118?
The component includes four single-pole single-throw (SPST) analog switches.
- What is the typical on-resistance (RON) of the HEF4066BT-Q100118?
The typical on-resistance (RON) is 175 Ω.
