Overview

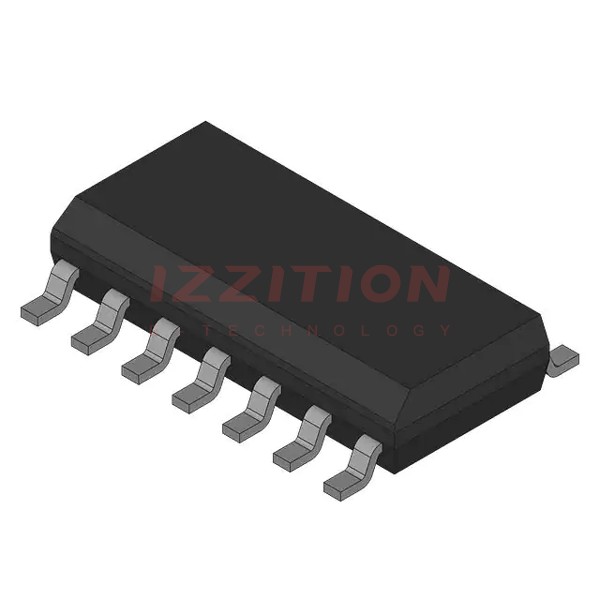

The HEF4011BT/S400118 is a quad 2-input NAND gate integrated circuit produced by NXP USA Inc. This component is part of the HEF4000 family and is known for its wide supply voltage range, low power dissipation, and high noise immunity. It is designed to operate within a recommended power supply range of 3 V to 15 V, making it versatile for various electronic applications.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|---|---|
| HEF4011BT | 3.0 - 15 | CMOS | ± 2.4 | 20 | 10 | 4 | Medium | -40 to +85 | SO14 (SOT108-1) |
Key Features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Fully static operation
- Standardized symmetrical output characteristics, complying with JEDEC standard JESD 13-B
- Inputs and outputs protected against electrostatic effects
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V) and CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V)
Applications
The HEF4011BT/S400118 is suitable for a variety of applications requiring logical operations, such as:
- Digital logic circuits
- Microprocessor and microcontroller systems
- Automotive and industrial control systems
- Consumer electronics
- Communication systems
Q & A
- What is the HEF4011BT/S400118?
The HEF4011BT/S400118 is a quad 2-input NAND gate integrated circuit.
- What is the operating voltage range of the HEF4011BT/S400118?
The operating voltage range is from 3 V to 15 V.
- What type of logic does the HEF4011BT/S400118 use?
The HEF4011BT/S400118 uses CMOS logic.
- What is the output drive capability of the HEF4011BT/S400118?
The output drive capability is ± 2.4 mA.
- What is the maximum propagation delay of the HEF4011BT/S400118?
The maximum propagation delay is 20 ns.
- What is the maximum frequency of operation for the HEF4011BT/S400118?
The maximum frequency of operation is 10 MHz.
- What type of package does the HEF4011BT/S400118 come in?
The HEF4011BT/S400118 comes in an SO14 (SOT108-1) package.
- What is the temperature range for the HEF4011BT/S400118?
The temperature range is from -40 °C to +85 °C.
- Does the HEF4011BT/S400118 have ESD protection?
- What are some common applications for the HEF4011BT/S400118?
