Overview

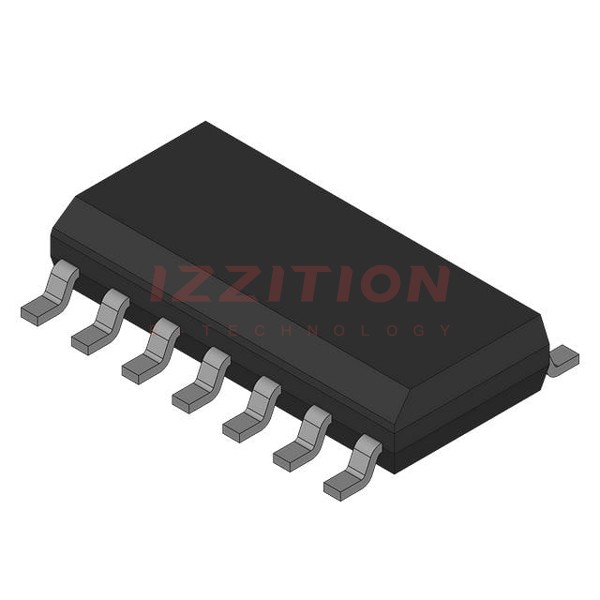

The HEF4001BT/S400118 is a quad 2-input NOR gate produced by NXP USA Inc. This component is part of the HEF4001B series, which is designed for a wide range of digital logic applications. It features CMOS technology, ensuring low power dissipation and high noise immunity. The device is fully static, meaning it does not require a clock signal to operate, and it complies with JEDEC standard JESD 13-B. The HEF4001BT is packaged in a SO14 (SOT108-1) package, making it suitable for various electronic designs requiring multiple NOR gate functions.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEF4001BT | 3.0 - 15 | CMOS | ± 2.4 | 20 | 10 | 4 | medium | -40 ~ 85 | 107 | 19.5 | 65 | SO14 (SOT108-1) |
Key Features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Fully static operation
- Standardized symmetrical output characteristics
- Inputs include clamp diodes for interfacing with voltages in excess of VDD
- Complies with JEDEC standard JESD 13-B
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Applications
- Digital logic circuits
- Microprocessor and microcontroller systems
- Communication equipment
- Industrial control systems
- Automotive electronics
- Consumer electronics requiring multiple NOR gate functions
Q & A
- What is the HEF4001BT/S400118?
The HEF4001BT/S400118 is a quad 2-input NOR gate produced by NXP USA Inc.
- What is the supply voltage range of the HEF4001BT?
The supply voltage range is from 3.0 V to 15.0 V.
- What type of logic does the HEF4001BT use?
The HEF4001BT uses CMOS logic.
- What is the output drive capability of the HEF4001BT?
The output drive capability is ± 2.4 mA.
- What is the maximum propagation delay of the HEF4001BT?
The maximum propagation delay is 20 ns.
- What is the maximum frequency of operation for the HEF4001BT?
The maximum frequency of operation is 10 MHz.
- What package type is the HEF4001BT available in?
The HEF4001BT is available in a SO14 (SOT108-1) package.
- What are the temperature specifications for the HEF4001BT?
The device is specified to operate from -40 °C to +85 °C and from -40 °C to +125 °C.
- Does the HEF4001BT have any special input protection features?
Yes, the inputs include clamp diodes to interface with voltages in excess of VDD.
- Is the HEF4001BT compliant with any industry standards?
Yes, it complies with JEDEC standard JESD 13-B.
