Overview
The FS32R274KSK2MMMR is a 32-bit microcontroller from NXP Semiconductors, designed for automotive and industrial applications. It is part of the S32R series, known for its high-performance and reliability. This microcontroller features a tri-core processing unit with e200z4 and e200z7 cores, making it suitable for demanding environments. The device is packaged in a 257-pin LFBGA (Land Grid Array) configuration, which is surface mountable and ideal for system designs requiring high-density integration.
Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer Part Number | FS32R274KSK2MMMR |
| Manufacturer | NXP Semiconductors |
| Core Processor | e200z4, e200z7 (2) |
| Core Size | 32-Bit Tri-Core |
| Speed | Up to 180MHz and 240MHz |
| Program Memory Size | 2MB (2M x 8) |
| EEPROM Size | 64K x 8 |
| RAM Size | 1.5M x 8 |
| Voltage Supply Range | 1.19V ~ 5.5V |
| Operating Temperature | -40°C to 125°C |

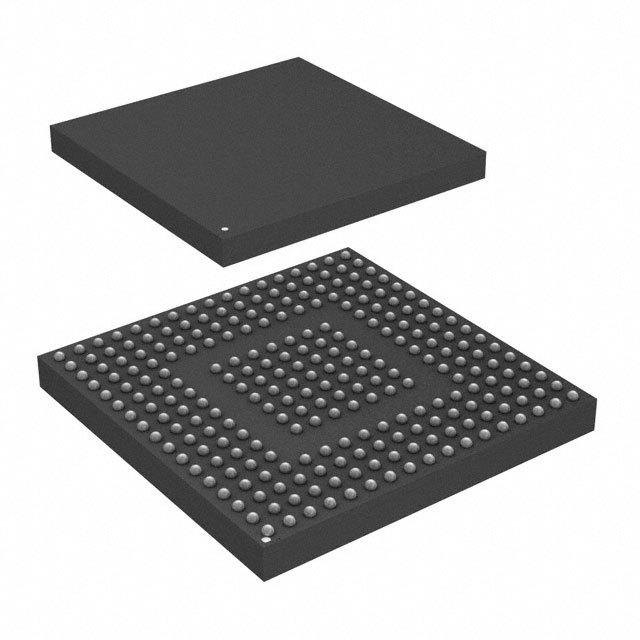

| Package Type | 257-pin LFBGA |
Key Features
- Multi-Core Architecture: Features a 32-bit tri-core processing unit with e200z4 and e200z7 cores for high-performance applications.
- High-Speed Operation: Operates at speeds up to 180MHz and 240MHz.
- Extensive Connectivity: Includes CANbus, FlexIO, I2C, LINbus, SPI, and UART/USART for comprehensive communication capabilities.
- Integrated Peripherals: Includes POR (Power-On Reset), PWM (Pulse Width Modulation), and WDT (Watchdog Timer) for enhanced functionality.
- High-Reliability: Built for high-reliability applications and operable in extreme temperatures from -40°C to 125°C.
Applications
- Automotive Electronics: Suitable for various automotive applications due to its compliance with automotive standards like AEC-Q100.
- Industrial Control Systems: Ideal for industrial control systems requiring robust and reliable performance.
Q & A
- What is the FS32R274KSK2MMMR microcontroller used for?
The FS32R274KSK2MMMR is used for automotive and industrial applications, leveraging its high-performance and reliability features.
- What type of core does the FS32R274KSK2MMMR have?
The FS32R274KSK2MMMR features a 32-bit tri-core processing unit with e200z4 and e200z7 cores.
- What is the maximum operating speed of the FS32R274KSK2MMMR?
The maximum operating speed is up to 180MHz and 240MHz.
- What is the program memory size of the FS32R274KSK2MMMR?
The program memory size is 2MB (2M x 8).
- What are the key communication protocols supported by the FS32R274KSK2MMMR?
The device supports CANbus, FlexIO, I2C, LINbus, SPI, and UART/USART.
- What is the operating temperature range of the FS32R274KSK2MMMR?
The operating temperature range is from -40°C to 125°C.
- What package type is the FS32R274KSK2MMMR available in?
The device is packaged in a 257-pin LFBGA configuration.
- Is the FS32R274KSK2MMMR compliant with automotive standards?
Yes, it is compliant with AEC-Q100 automotive standards.
- What are some of the integrated peripherals of the FS32R274KSK2MMMR?
The device includes POR, PWM, and WDT among its integrated peripherals.
- What is the lifecycle status of the FS32R274KSK2MMMR?
The FS32R274KSK2MMMR is currently active and available for use.
