Overview
The BZX284-C3V6,115 is a low-power voltage regulator diode produced by NXP USA Inc. This component is part of the BZX284 series, which offers a range of voltage regulator diodes with different nominal working voltages. Although the BZX284-C3V6,115 is currently obsolete and no longer manufactured, it remains relevant for understanding and replacing similar components in existing designs.
Key Specifications
| Parameter | Conditions | Min. | Max. | Unit |
|---|---|---|---|---|
| Working Voltage (VZ) | At IZtest = 5 mA | 3.42 | 3.78 | V |
| Continuous Forward Current (IF) | 250 | mA | ||
| Total Power Dissipation (Ptot) | Tamb = 25 °C | 400 | mW | |
| Forward Voltage (VF) | IF = 10 mA | 0.9 | V | |
| Junction Temperature (Tj) | 150 | °C | ||
| Storage Temperature (Tstg) | -65 | 150 | °C | |
| Thermal Resistance (Rth j-a) | Device mounted on a printed-circuit board | 315 | K/W |
Key Features

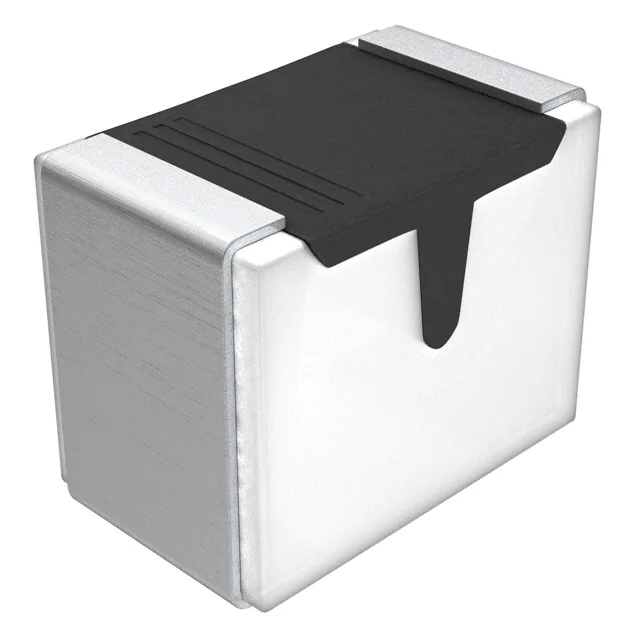

- Low-power voltage regulator diode in a small ceramic SMD SOD110 package.
- Available in ±5% tolerance range (BZX284-C series).
- Working voltage range from 2.4 to 75 V (E24 range).
- Total power dissipation of up to 400 mW.
- Continuous forward current of up to 250 mA.
- Thermal resistance from junction to ambient of 315 K/W.
Applications
The BZX284-C3V6,115 is suitable for general regulation functions in various electronic circuits. It can be used in applications requiring stable voltage regulation, such as power supplies, voltage references, and signal processing circuits.
Q & A
- What is the working voltage of the BZX284-C3V6,115? The working voltage (VZ) of the BZX284-C3V6,115 is between 3.42 V and 3.78 V at IZtest = 5 mA.
- What is the maximum continuous forward current of the BZX284-C3V6,115? The maximum continuous forward current (IF) is 250 mA.
- What is the total power dissipation of the BZX284-C3V6,115? The total power dissipation (Ptot) is up to 400 mW at Tamb = 25 °C.
- What is the forward voltage of the BZX284-C3V6,115? The forward voltage (VF) is up to 0.9 V at IF = 10 mA.
- What is the junction temperature limit of the BZX284-C3V6,115? The junction temperature (Tj) should not exceed 150 °C.
- What is the storage temperature range for the BZX284-C3V6,115? The storage temperature (Tstg) range is from -65 °C to 150 °C.
- What is the thermal resistance from junction to ambient for the BZX284-C3V6,115? The thermal resistance (Rth j-a) is 315 K/W when the device is mounted on a printed-circuit board.
- In what package is the BZX284-C3V6,115 available? The BZX284-C3V6,115 is available in a small ceramic SMD SOD110 package.
- Is the BZX284-C3V6,115 still in production? No, the BZX284-C3V6,115 is obsolete and no longer manufactured.
- What are some possible applications for the BZX284-C3V6,115? It can be used in general regulation functions, power supplies, voltage references, and signal processing circuits.
