Overview

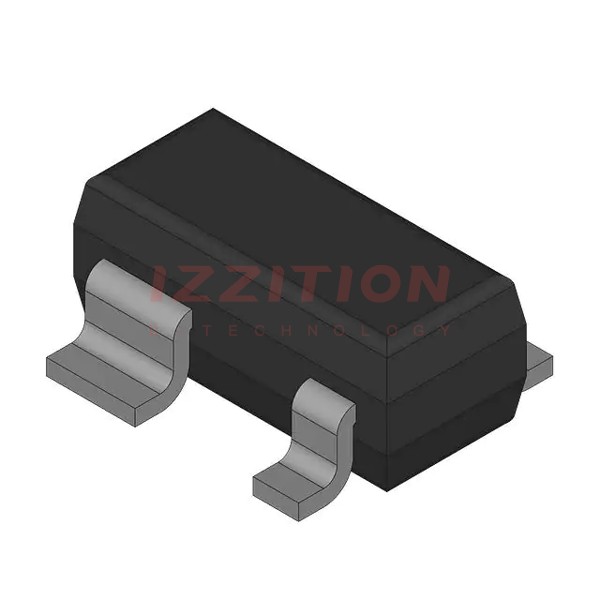

The BCV61B235 is a discrete semiconductor component produced by Nexperia, which is often associated with NXP USA Inc. due to the historical connection between the two companies. Nexperia was spun off from NXP Semiconductors in 2017. This component is part of the BCV61 series, which are general-purpose transistors designed for a wide range of applications.
Key Specifications
| Parameter | Value |
|---|---|
| Type | General-purpose transistor |
| Polarity | NPN |
| Collector-Base Voltage (Vcb) | 60 V |
| Collector-Emitter Voltage (Vce) | 60 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 1 A |
| Base Current (Ib) | 50 mA |
| Power Dissipation (Ptot) | 625 mW |
| Operating Temperature Range | -55°C to +150°C |
Key Features
- High current capability up to 1 A
- Low noise and low distortion
- High collector-emitter voltage (Vce) of 60 V
- Wide operating temperature range from -55°C to +150°C
- Suitable for a variety of applications including switching, amplification, and general-purpose use
Applications
- Switching circuits
- Amplifier circuits
- General-purpose electronic devices
- Automotive electronics
- Industrial control systems
Q & A
- What is the BCV61B235?
The BCV61B235 is a general-purpose NPN transistor.
- Who is the manufacturer of the BCV61B235?
The BCV61B235 is manufactured by Nexperia, which was previously part of NXP Semiconductors.
- What is the maximum collector current of the BCV61B235?
The maximum collector current is 1 A.
- What is the operating temperature range of the BCV61B235?
The operating temperature range is from -55°C to +150°C.
- What are some common applications of the BCV61B235?
Common applications include switching circuits, amplifier circuits, and general-purpose electronic devices.
- What is the collector-emitter voltage (Vce) of the BCV61B235?
The collector-emitter voltage (Vce) is 60 V.
- Is the BCV61B235 suitable for automotive electronics?
- Where can I find detailed specifications for the BCV61B235?
Detailed specifications can be found on the datasheet available from manufacturers like Nexperia or distributors such as Mouser and Digi-Key.
- What is the power dissipation (Ptot) of the BCV61B235?
The power dissipation (Ptot) is 625 mW.
- Is the BCV61B235 a low-noise transistor?
