Overview
The 74LVC1G79GW125 is a D-type flip-flop integrated circuit produced by NXP USA Inc. This component belongs to the LVC (Low Voltage CMOS) series, known for its low power consumption and high performance. The 74LVC1G79GW125 is designed to operate with a wide range of supply voltages, making it versatile for various digital circuit applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | 74LVC1G79GW125 |

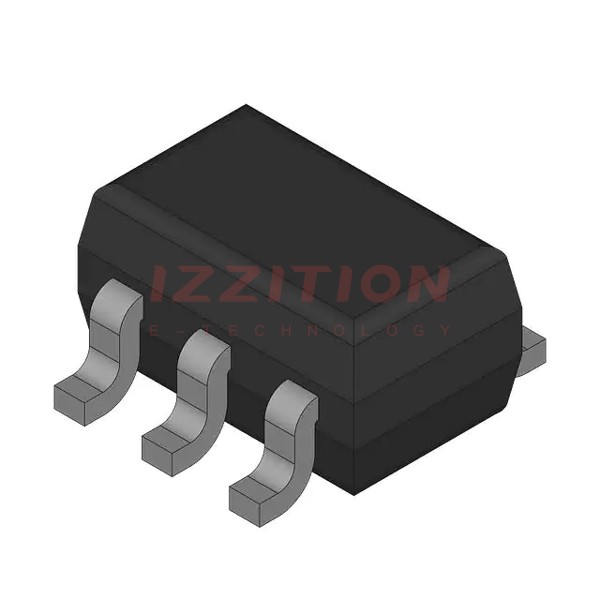

| Package/Case | SC-74A, SOT-753 |
| Logic Family | LVC (Low Voltage CMOS) |
| Number of Bits | 1 |
| Flip-Flop Type | D-Type, Positive Edge Triggered |
| Supply Voltage | 1.65 V to 5.5 V |
| Operating Temperature | -40°C to 125°C |
Key Features
- Low Power Consumption: The 74LVC1G79GW125 operates with low power consumption, making it suitable for battery-powered devices and energy-efficient designs.
- Wide Supply Voltage Range: Compatible with supply voltages from 1.65 V to 5.5 V, allowing for use in a variety of digital circuits.
- High Speed: Offers high switching speeds, ensuring reliable performance in high-frequency applications.
- Positive Edge Triggered: The flip-flop is triggered on the positive edge of the clock signal, providing precise timing control.
Applications
The 74LVC1G79GW125 is suitable for a wide range of digital circuit applications, including:
- Sequential Logic Circuits: Ideal for use in counters, shift registers, and other sequential logic circuits.
- Memory Elements: Can be used as memory elements in digital systems.
- Timing and Synchronization: Useful in timing and synchronization circuits due to its positive edge triggering.
- General Digital Circuits: Applicable in various general digital circuit designs requiring low power and high performance.
Q & A
- What is the primary function of the 74LVC1G79GW125?
The primary function of the 74LVC1G79GW125 is to act as a D-type flip-flop, which is a type of sequential logic circuit element. - What is the supply voltage range for the 74LVC1G79GW125?
The supply voltage range for the 74LVC1G79GW125 is from 1.65 V to 5.5 V. - What type of triggering does the 74LVC1G79GW125 use?
The 74LVC1G79GW125 is triggered on the positive edge of the clock signal. - What package type is the 74LVC1G79GW125 available in?
The 74LVC1G79GW125 is available in the SC-74A, SOT-753 package. - What are the operating temperature limits for the 74LVC1G79GW125?
The operating temperature limits for the 74LVC1G79GW125 are from -40°C to 125°C. - Is the 74LVC1G79GW125 suitable for low power applications?
Yes, the 74LVC1G79GW125 is designed for low power consumption, making it suitable for battery-powered devices and energy-efficient designs. - What logic family does the 74LVC1G79GW125 belong to?
The 74LVC1G79GW125 belongs to the LVC (Low Voltage CMOS) logic family. - Can the 74LVC1G79GW125 be used in high-frequency applications?
Yes, the 74LVC1G79GW125 offers high switching speeds, making it suitable for high-frequency applications. - What are some common applications of the 74LVC1G79GW125?
The 74LVC1G79GW125 is commonly used in sequential logic circuits, memory elements, timing and synchronization circuits, and general digital circuit designs. - Who is the manufacturer of the 74LVC1G79GW125?
The manufacturer of the 74LVC1G79GW125 is NXP USA Inc.
