Overview
The 74LVC1G3157GV-Q100125 is a single-pole double-throw (SPDT) analog switch produced by Nexperia (formerly part of NXP USA Inc.). This component is designed to handle analog signals and features a digital select input (S) along with two independent inputs/outputs (Y0 and Y1) and a common input (Y). It is part of the LVC (Low Voltage CMOS) family, known for its low power consumption and high speed.
Key Specifications
| Parameter | Value |
|---|---|

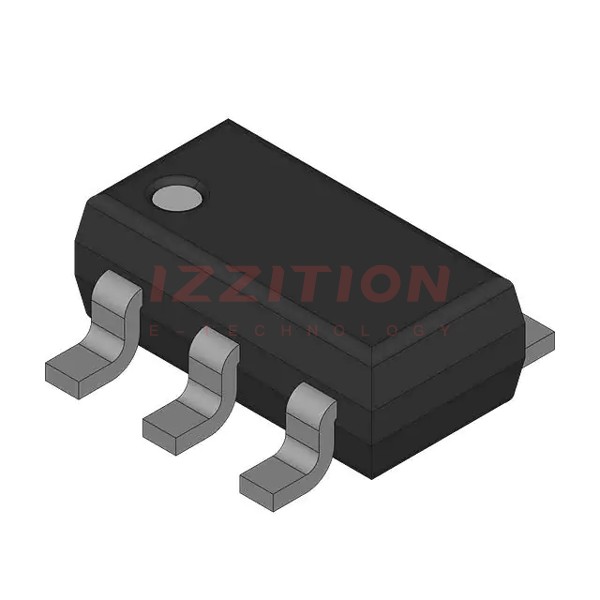

| Package Type | TSOP6 |
| Number of Channels | 1 |
| Switch Type | SPDT (Single-Pole Double-Throw) |
| Input/Output Configuration | 2 Independent Inputs/Outputs (Y0, Y1), 1 Common Input (Y) |
| Supply Voltage Range | 1.65 V to 5.5 V |
| On Resistance (Ron) | 10 Ω (typical) |
| Operating Temperature Range | -40°C to +125°C |
| Switching Time | Typically 5 ns |
Key Features
- Low On Resistance: The switch has a low on resistance of 10 Ω, ensuring minimal signal attenuation.
- High Speed: Fast switching times, typically around 5 ns, making it suitable for high-speed applications.
- Low Power Consumption: Part of the LVC family, it operates with low power consumption, ideal for battery-powered devices.
- Wide Supply Voltage Range: Operates from 1.65 V to 5.5 V, making it versatile for various applications.
- Compact Package: Available in a TSOP6 package, which is compact and suitable for space-constrained designs.
Applications
The 74LVC1G3157GV-Q100125 is suitable for a variety of applications, including:
- Audio and Video Switching: Ideal for switching audio and video signals in consumer electronics.
- Communication Systems: Used in communication systems for signal routing and switching.
- Industrial Control Systems: Suitable for industrial control systems where reliable and fast switching is required.
- Medical Devices: Can be used in medical devices where low power consumption and high reliability are critical.
Q & A
- What is the primary function of the 74LVC1G3157GV-Q100125?
The primary function is to act as a single-pole double-throw (SPDT) analog switch, allowing the selection between two independent inputs/outputs. - What is the typical on resistance of the switch?
The typical on resistance is 10 Ω. - What is the operating temperature range of this component?
The operating temperature range is from -40°C to +125°C. - What is the package type of the 74LVC1G3157GV-Q100125?
The package type is TSOP6. - What is the supply voltage range for this component?
The supply voltage range is from 1.65 V to 5.5 V. - How many channels does the 74LVC1G3157GV-Q100125 have?
It has one channel. - What are some common applications for this component?
Common applications include audio and video switching, communication systems, industrial control systems, and medical devices. - What family does this component belong to?
It belongs to the LVC (Low Voltage CMOS) family. - What is the typical switching time of the 74LVC1G3157GV-Q100125?
The typical switching time is around 5 ns. - Who is the manufacturer of the 74LVC1G3157GV-Q100125?
The manufacturer is Nexperia (formerly part of NXP USA Inc.).
