Overview
The 74LVC07ABQ-Q100115 is a hex buffer with open-drain outputs, manufactured by NXP USA Inc. This integrated circuit is part of the LVC (Low Voltage CMOS) series, known for its low power consumption and high performance. The device is designed to provide six non-inverting buffer functions, making it suitable for a variety of digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | 74LVC07ABQ-Q100115 |
| Manufacturer | NXP USA Inc. |

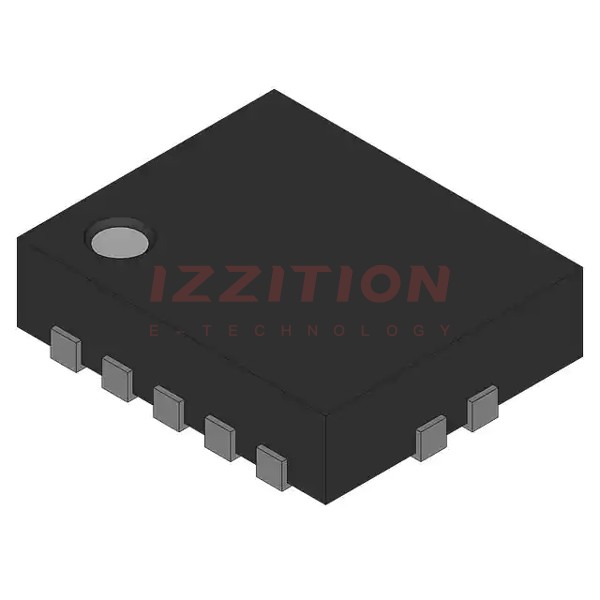

| Package Type | 14-DHVQFN (2.5x3) |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Bits per Element | 1 |
| Output Type | Open Drain |
| Supply Voltage | 1.65V to 5.5V |
| Operating Temperature | -40°C to 125°C (TA) |
| Mounting Type | Surface Mount |
Key Features
- Low power consumption: The 74LVC07ABQ-Q100115 operates with low power, making it energy-efficient.
- High speed: The device supports high-speed data transfer, suitable for demanding applications.
- Open-drain outputs: Allows for wired-OR and wired-AND configurations.
- Wide operating voltage range: Compatible with voltages from 1.65V to 5.5V.
- High noise immunity: Ensures reliable operation in noisy environments.
Applications
The 74LVC07ABQ-Q100115 is versatile and can be used in various digital logic applications, including:
- Buffering and driving signals in digital circuits.
- Wired-OR and wired-AND configurations due to open-drain outputs.
- Low power consumer electronics.
- Automotive and industrial control systems.
- Communication and networking equipment.
Q & A
- What is the primary function of the 74LVC07ABQ-Q100115?
The primary function is to provide six non-inverting buffer functions with open-drain outputs. - What is the operating voltage range of the 74LVC07ABQ-Q100115?
The operating voltage range is from 1.65V to 5.5V. - What type of package does the 74LVC07ABQ-Q100115 come in?
The device comes in a 14-DHVQFN (2.5x3) package. - What are the key benefits of using the 74LVC07ABQ-Q100115?
The key benefits include low power consumption, high speed, and high noise immunity. - Can the 74LVC07ABQ-Q100115 be used in automotive applications?
Yes, it can be used in automotive and industrial control systems due to its robust specifications. - What is the significance of open-drain outputs in the 74LVC07ABQ-Q100115?
Open-drain outputs allow for wired-OR and wired-AND configurations, enhancing the device's versatility. - Is the 74LVC07ABQ-Q100115 RoHS compliant?
Yes, the device is RoHS compliant, making it suitable for use in environments where lead-free components are required. - What is the operating temperature range of the 74LVC07ABQ-Q100115?
The operating temperature range is from -40°C to 125°C (TA). - Can the 74LVC07ABQ-Q100115 be used in communication and networking equipment?
Yes, it is suitable for use in communication and networking equipment due to its high speed and reliability. - How many buffer elements does the 74LVC07ABQ-Q100115 contain?
The device contains six non-inverting buffer elements.
