Overview
The 74LV4052PW-Q100118 is a dual single-pole quad-throw analog switch, designed and manufactured by Nexperia (previously part of NXP). This component is suitable for use in 4:1 multiplexer/demultiplexer applications. It features two independent switches, each with four input/output channels and a common input/output, making it versatile for various signal routing tasks. The device is qualified to the Automotive Electronics Council (AEC) standard Q100, ensuring reliability in automotive and other demanding environments.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|

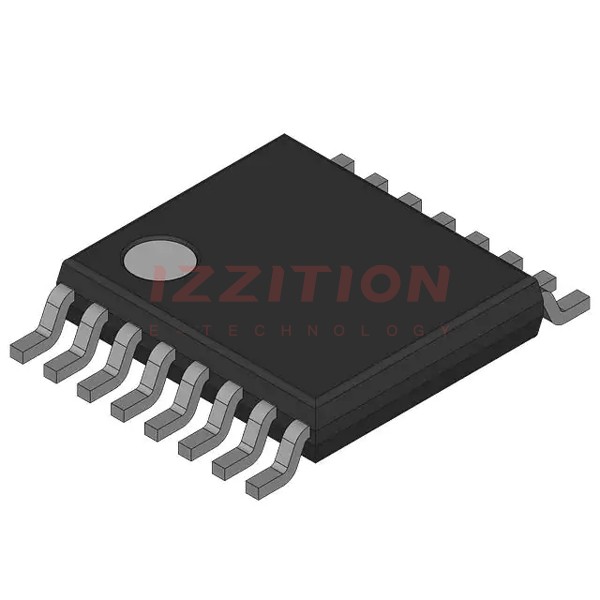

| Package Type | TSSOP16 | - |
| Number of Channels | Dual 4-channel | - |
| Operating Temperature Range | -40 °C to +125 °C | °C |
| Supply Voltage Range | 2.7 V to 3.6 V | V |
| ON Resistance | 3 Ω (VCC = 4.5 V, ISW = 1000 μA) | Ω |
| Input Capacitance | 3.5 pF (typical) | pF |
| Switch Capacitance | 12 pF (typical) | pF |
| Total Harmonic Distortion (THD) | 1.2% (VCC = 6.0 V, VI = 5.5 V p-p) | % |
| -3 dB Frequency Response | 200 MHz (VCC = 6.0 V) | MHz |
Key Features
- Dual single-pole quad-throw analog switch configuration, suitable for 4:1 multiplexer/demultiplexer applications.
- Each switch features four independent inputs/outputs and a common input/output.
- Digital enable input (E) and two digital select inputs (S0, S1) common to both switches.
- Clamp diodes on digital inputs to interface with voltages in excess of VCC.
- Qualified to the Automotive Electronics Council (AEC) standard Q100.
- Low ON resistance and high -3 dB frequency response.
- Low total harmonic distortion (THD).
Applications
- Automotive systems: Given its AEC Q100 qualification, it is suitable for use in various automotive applications where reliability and performance are critical.
- Industrial control systems: Ideal for signal routing and switching in industrial automation and control systems.
- Audio and video equipment: Used in audio and video signal routing due to its low THD and high frequency response.
- Medical devices: Can be used in medical equipment where precise signal switching is required.
- Telecommunications: Suitable for use in telecommunications equipment for signal multiplexing and demultiplexing.
Q & A
- What is the 74LV4052PW-Q100118 used for?
The 74LV4052PW-Q100118 is used as a dual single-pole quad-throw analog switch in 4:1 multiplexer/demultiplexer applications.
- What is the operating temperature range of the 74LV4052PW-Q100118?
The operating temperature range is -40 °C to +125 °C.
- What is the supply voltage range for this component?
The supply voltage range is 2.7 V to 3.6 V.
- What is the typical ON resistance of the 74LV4052PW-Q100118?
The typical ON resistance is 3 Ω at VCC = 4.5 V and ISW = 1000 μA.
- Is the 74LV4052PW-Q100118 qualified for automotive use?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100.
- What is the -3 dB frequency response of the 74LV4052PW-Q100118?
The -3 dB frequency response is up to 200 MHz at VCC = 6.0 V.
- What is the total harmonic distortion (THD) of this component?
The THD is 1.2% at VCC = 6.0 V and VI = 5.5 V p-p.
- How many channels does the 74LV4052PW-Q100118 have?
The component has two independent 4-channel switches.
- What type of package does the 74LV4052PW-Q100118 come in?
The component comes in a TSSOP16 package.
- What are some common applications of the 74LV4052PW-Q100118?
Common applications include automotive systems, industrial control systems, audio and video equipment, medical devices, and telecommunications equipment.
