Overview
The 74HCT2G34GW132 is a dual buffer gate produced by NXP USA Inc. This component is part of the 74HCT series of logic devices, known for their high-speed operation and robust performance. The 74HCT2G34GW132 is designed to provide reliable data buffering and signal conditioning in various digital electronic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HCT2G34GW |
| Logic Switching Levels | TTL |
| Supply Voltage (VCC) | 4.5 - 5.5 V |
| Output Drive Capability | ± 4 mA |
| Maximum Frequency (fmax) | 32 MHz |
| Number of Bits | 2 |
| Power Dissipation | Low power dissipation |
| Operating Temperature Range | -40°C to +125°C |

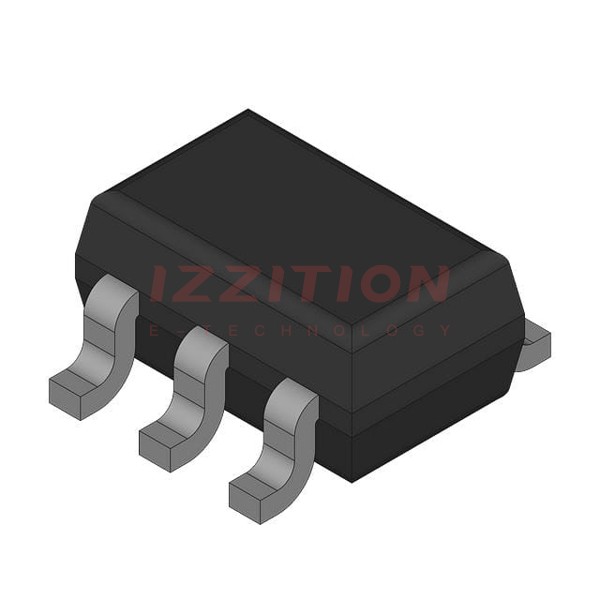

| Package Type | TSSOP6 (SOT363-2) |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Dual buffer gate configuration with high-speed operation and balanced propagation delays.
- Inputs include clamp diodes, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Wide supply voltage range from 2.0 V to 6.0 V.
- High noise immunity and CMOS low power dissipation.
- Unlimited input rise and fall times.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- Compliance with JEDEC standards (JESD8C and JESD7A).
- Compact TSSOP6 surface-mount package.
Applications
- Computer and peripheral equipment.
- Industrial control and automation.
- Telecommunications equipment.
- Automotive electronics.
- Consumer electronics.
Q & A
- What is the 74HCT2G34GW132 used for? The 74HCT2G34GW132 is used for high-speed data buffering and signal conditioning in digital electronic applications.
- What is the supply voltage range of the 74HCT2G34GW132? The supply voltage range is from 2.0 V to 6.0 V.
- What is the maximum frequency of operation for the 74HCT2G34GW132? The maximum frequency of operation is 32 MHz.
- What type of logic switching levels does the 74HCT2G34GW132 support? The 74HCT2G34GW132 supports TTL logic switching levels.
- What is the operating temperature range of the 74HCT2G34GW132? The operating temperature range is from -40°C to +125°C.
- What type of package does the 74HCT2G34GW132 come in? The 74HCT2G34GW132 comes in a TSSOP6 (SOT363-2) package.
- Does the 74HCT2G34GW132 have ESD protection? Yes, it has ESD protection exceeding 2000 V for HBM and 1000 V for CDM.
- Is the 74HCT2G34GW132 compliant with industry standards? Yes, it complies with JEDEC standards (JESD8C and JESD7A).
- What are some common applications of the 74HCT2G34GW132? Common applications include computer and peripheral equipment, industrial control and automation, telecommunications equipment, automotive electronics, and consumer electronics.
- How many bits does the 74HCT2G34GW132 have? The 74HCT2G34GW132 has 2 bits.
