Overview

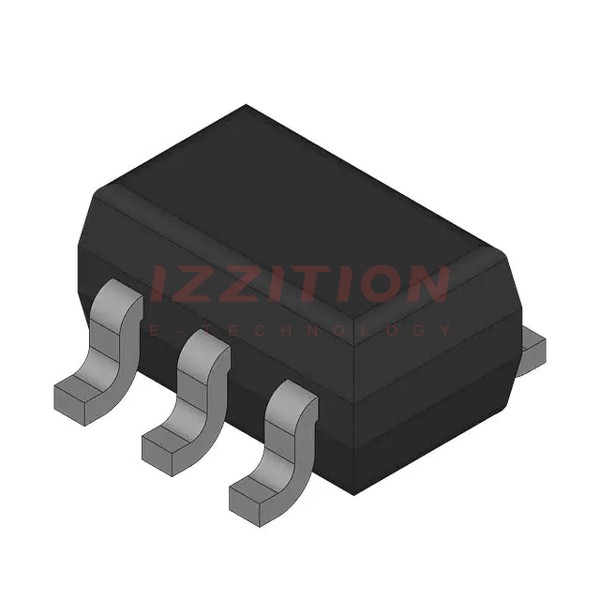

The 74HCT1G66GW-Q100125 is a single-pole, single-throw (SPST) analog switch produced by NXP USA Inc. This component is part of the 74HC and 74HCT series, which are known for their compatibility with a wide range of logic levels and their suitability for various applications, including automotive systems. The device features two input/output terminals (nY and nZ) and a digital enable input (nE), allowing for precise control over the switching operation. When the enable input (nE) is LOW, the analog switch is turned off, and when it is HIGH, the switch is turned on.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VCC (Supply Voltage) | - | 2.0 | - | 10.0 | V |
| Operating Temperature | - | -40 | - | 125 | °C |
| ON Resistance (RON) | ISW = 1 mA; VCC = 4.5 V | 29 | - | 115 | Ω |
| Propagation Delay (tpd) | VCC = 4.5 V; CL = 50 pF; RL = 1 kΩ | 3 | - | 18 | ns |
| Enable Time (ten) | VCC = 4.5 V; CL = 50 pF; RL = 1 kΩ | 16 | - | 30 | ns |
| Disable Time (tdis) | VCC = 4.5 V; CL = 50 pF; RL = 1 kΩ | 16 | - | 45 | ns |
| Power Dissipation Capacitance (CPD) | VI = GND to VCC | - | - | 9 | pF |
Key Features
- Automotive Product Qualification: Qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for automotive applications.
- Wide Supply Voltage Range: Operates from 2.0 V to 10.0 V, providing flexibility in various system designs.
- Low ON Resistance: Very low ON resistance, ensuring minimal signal attenuation and high signal integrity.
- TTL Compatibility: The HCT version features control inputs with reduced input threshold levels, allowing interfacing to TTL logic levels.
- Temperature Range: Specified from -40 °C to +85 °C and from -40 °C to +125 °C, ensuring reliability in harsh environments.
- Clamp Diodes: Includes clamp diodes to protect against voltage spikes and enable the use of current limiting resistors.
Applications
- Automotive Systems: Suitable for use in automotive applications due to its AEC-Q100 qualification and wide operating temperature range.
- Industrial Control Systems: Used in industrial control systems where reliable and low ON resistance switching is required.
- Medical Devices: Can be used in medical devices that require precise and reliable analog switching.
- Consumer Electronics: Applicable in consumer electronics such as audio and video equipment where signal integrity is crucial.
Q & A
- What is the 74HCT1G66GW-Q100125?
The 74HCT1G66GW-Q100125 is a single-pole, single-throw (SPST) analog switch produced by NXP USA Inc.
- What is the operating temperature range of the 74HCT1G66GW-Q100125?
The device operates from -40 °C to +125 °C.
- What is the supply voltage range for the 74HCT1G66GW-Q100125?
The supply voltage range is from 2.0 V to 10.0 V.
- Is the 74HCT1G66GW-Q100125 suitable for automotive applications?
- What is the typical ON resistance of the 74HCT1G66GW-Q100125?
The typical ON resistance is around 29 Ω at VCC = 4.5 V and ISW = 1 mA.
- Does the 74HCT1G66GW-Q100125 have TTL compatibility?
- What is the propagation delay of the 74HCT1G66GW-Q100125?
The propagation delay is typically around 3 ns to 18 ns at VCC = 4.5 V.
- What is the power dissipation capacitance of the 74HCT1G66GW-Q100125?
The power dissipation capacitance is typically around 9 pF.
- Does the 74HCT1G66GW-Q100125 include clamp diodes?
- What are some common applications of the 74HCT1G66GW-Q100125?
