Overview
The 74HC86PW/C4118 is a quad 2-input EXCLUSIVE-OR gate integrated circuit produced by NXP USA Inc., now part of Nexperia. This component is designed to provide logical operations in a variety of electronic systems. It features a wide supply voltage range, low power consumption, and high noise immunity, making it suitable for diverse applications across different industries.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HC86PW |
| Package | TSSOP14 (SOT402-1) |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Logic Switching Levels | CMOS |
| Output Drive Capability | ± 5.2 mA |
| Propagation Delay (tpd) | 11 ns |
| Maximum Frequency (fmax) | 36 MHz |
| Number of Bits | 4 |
| Power Dissipation | Low |
| Operating Temperature Range | -40 °C to +125 °C |
| Thermal Resistance (Rth(j-a)) | 141 K/W |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- ESD protection: HBM exceeds 2000 V, CDM exceeds 1000 V
- Inputs include clamp diodes for interfacing with voltages in excess of VCC
Applications
The 74HC86PW/C4118 is versatile and can be used in various applications across different industries, including:
- Automotive systems
- Industrial control systems
- Consumer electronics
- Mobile devices
- Wearable technology
- Power and computing systems
Q & A
- What is the primary function of the 74HC86PW/C4118?
The primary function is to perform logical EXCLUSIVE-OR operations. - What is the supply voltage range for the 74HC86PW/C4118?
The supply voltage range is from 2.0 V to 6.0 V. - What type of logic switching levels does the 74HC86PW/C4118 use?
The 74HC86PW/C4118 uses CMOS logic switching levels. - What is the maximum frequency of operation for the 74HC86PW/C4118?
The maximum frequency of operation is 36 MHz. - What is the thermal resistance (Rth(j-a)) of the 74HC86PW/C4118?
The thermal resistance (Rth(j-a)) is 141 K/W. - Does the 74HC86PW/C4118 have ESD protection?
Yes, it has ESD protection: HBM exceeds 2000 V, CDM exceeds 1000 V. - What is the operating temperature range for the 74HC86PW/C4118?
The operating temperature range is from -40 °C to +125 °C. - What type of package does the 74HC86PW/C4118 come in?

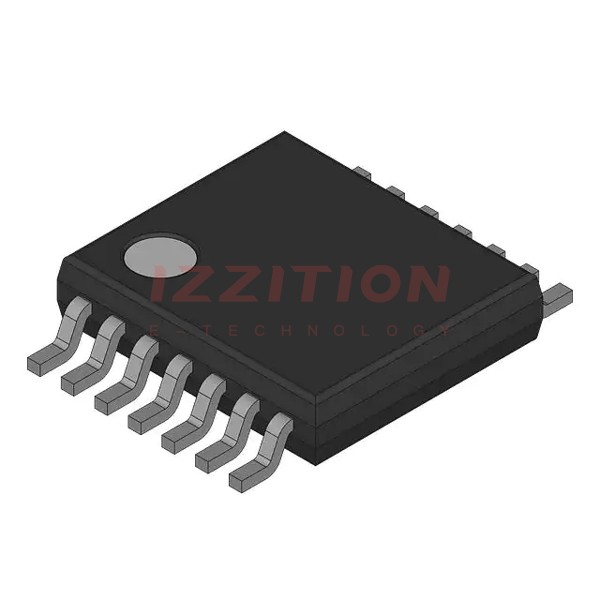

The 74HC86PW/C4118 comes in a TSSOP14 (SOT402-1) package. - Is the 74HC86PW/C4118 RoHS compliant?
Yes, the 74HC86PW/C4118 is RoHS compliant. - What are some common applications for the 74HC86PW/C4118?
Common applications include automotive, industrial, consumer electronics, mobile devices, and power and computing systems.
