Overview

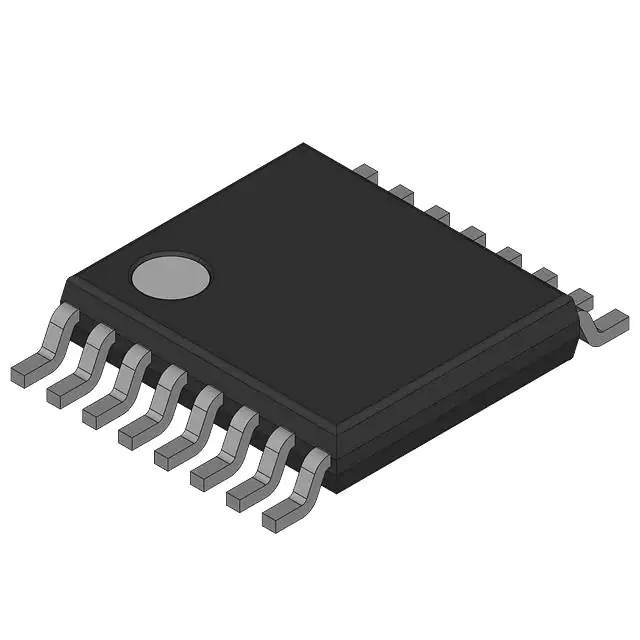

The 74HC165PW/S911118 is a complementary parallel or serial to serial 8-bit shift register produced by NXP USA Inc. This integrated circuit is part of the 74HC series, known for its high-speed CMOS logic. The device is designed to operate in both parallel and serial input modes, making it versatile for various digital circuit applications. It features a 16-pin TSSOP package, which is compact and suitable for modern electronic designs.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | 74HC165PW/S911118 |
| Package Type | 16-TSSOP |
| Number of Bits | 8-bit |
| Input Type | Parallel or Serial |
| Output Type | Serial |
| Operating Voltage | 2.0 V to 6.0 V |
| Operating Temperature | -40°C to 125°C |
Key Features
- Complementary parallel or serial to serial 8-bit shift register.
- High-speed CMOS logic with low power consumption.
- Operates in both parallel and serial input modes.
- 16-pin TSSOP package for compact design.
- Wide operating voltage range from 2.0 V to 6.0 V.
- Extended operating temperature range from -40°C to 125°C.
Applications
- Digital circuit design where data needs to be shifted in serial or parallel format.
- Microcontroller and microprocessor systems for data transfer and storage.
- Communication systems requiring serial to parallel or parallel to serial data conversion.
- Automotive and industrial control systems where robust and reliable data transfer is necessary.
Q & A
- What is the function of the 74HC165PW/S911118?
The 74HC165PW/S911118 is a complementary parallel or serial to serial 8-bit shift register, allowing data to be input in either parallel or serial format and output in serial format.
- What package type does the 74HC165PW/S911118 come in?
The device comes in a 16-pin TSSOP package.
- What is the operating voltage range of the 74HC165PW/S911118?
The operating voltage range is from 2.0 V to 6.0 V.
- What is the operating temperature range of the 74HC165PW/S911118?
The operating temperature range is from -40°C to 125°C.
- What are some common applications of the 74HC165PW/S911118?
Common applications include digital circuit design, microcontroller and microprocessor systems, communication systems, and automotive and industrial control systems.
- Is the 74HC165PW/S911118 suitable for high-speed applications?
Yes, it is part of the 74HC series known for high-speed CMOS logic.
- Can the 74HC165PW/S911118 handle both parallel and serial inputs?
Yes, it can operate with both parallel and serial input modes.
- What is the significance of the TSSOP package?
The TSSOP package is compact and suitable for modern electronic designs, offering space efficiency.
- Is the 74HC165PW/S911118 compatible with a wide range of voltage levels?
Yes, it operates over a wide voltage range from 2.0 V to 6.0 V.
- How does the 74HC165PW/S911118 contribute to power efficiency in circuits?
It is designed with low power consumption, making it efficient for various digital circuit applications.
