Overview
The 74HC03D-Q100118 is a quad 2-input NAND gate integrated circuit produced by NXP USA Inc. This component is part of the 74HC family, known for its high-performance and low-power CMOS logic. The device features open-drain outputs, which allow for flexible use in various logic circuits. It is designed to operate over a wide supply voltage range from 2.0 V to 6.0 V, making it versatile for different application environments.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74HC03D | 2.0 - 6.0 | CMOS | 5.2 | 8.0 | 36 | 4 | Low | -40 ~ 125 | 96 | 12.2 | 54 | SO14 |
Key Features
- Quad 2-input NAND gate: The device contains four independent NAND gates, each with two inputs and an open-drain output.
- Open-drain outputs: Allows for the use of external pull-up resistors to set the output voltage level.
- Wide supply voltage range: Operates from 2.0 V to 6.0 V, making it suitable for a variety of applications.
- CMOS low power dissipation: Low quiescent current, reducing power consumption.
- High noise immunity: Ensures reliable operation in noisy environments.
- Latch-up performance: Exceeds 100 mA per JESD 78 Class II Level B.
- ESD protection: Compliant with ANSI/ESDA/JEDEC JS-001 class 2 (exceeds 2000 V) and JS-002 class C3 (exceeds 1000 V).
- Automotive qualification: Qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), suitable for automotive applications.
Applications
The 74HC03D-Q100118 is versatile and can be used in a wide range of applications, including:
- Automotive systems: Due to its automotive qualification, it is suitable for use in vehicle electronics.
- Industrial control systems: Its high noise immunity and robust design make it ideal for industrial environments.
- Consumer electronics: Used in various consumer devices where low power consumption and high reliability are required.
- Computing and networking equipment: Can be used in logic circuits within computing and networking devices.
Q & A
- What is the 74HC03D-Q100118?
The 74HC03D-Q100118 is a quad 2-input NAND gate integrated circuit with open-drain outputs, produced by NXP USA Inc.
- What is the supply voltage range of the 74HC03D-Q100118?
The device operates over a supply voltage range from 2.0 V to 6.0 V.
- What are the logic switching levels for the 74HC03D-Q100118?
The logic switching levels are CMOS levels for the 74HC03D.
- What is the maximum propagation delay of the 74HC03D-Q100118?
The maximum propagation delay is 8.0 ns.
- What is the output drive capability of the 74HC03D-Q100118?
The output drive capability is up to 5.2 mA.
- Is the 74HC03D-Q100118 suitable for automotive applications?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1).

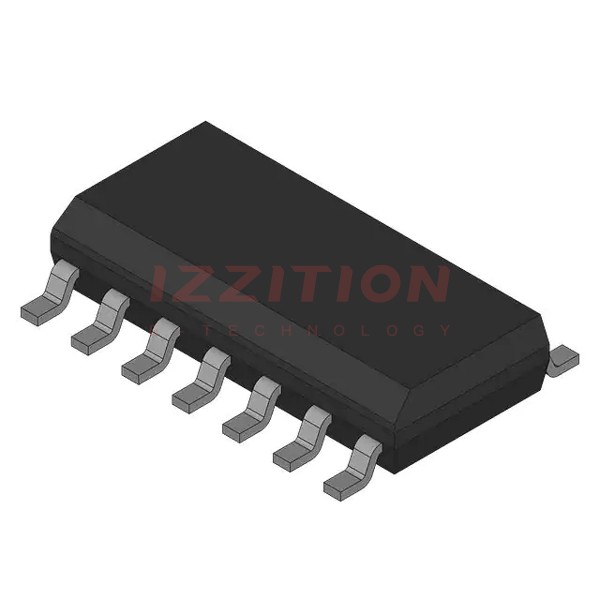

- What type of package does the 74HC03D-Q100118 come in?
The device comes in a 14-lead SOIC (Small Outline Integrated Circuit) package.
- What is the operating temperature range of the 74HC03D-Q100118?
The operating temperature range is from -40 °C to +125 °C.
- Does the 74HC03D-Q100118 have ESD protection?
Yes, it complies with ANSI/ESDA/JEDEC JS-001 class 2 (exceeds 2000 V) and JS-002 class C3 (exceeds 1000 V).
- What are some common applications of the 74HC03D-Q100118?
It is used in automotive systems, industrial control systems, consumer electronics, and computing and networking equipment.
