Overview
The 74AHC1G32GV-Q100125 is a single 2-input OR gate produced by NXP USA Inc. This component is part of the AHC/VHC/H/U/V series and is designed for use in a variety of electronic applications. It is particularly suited for automotive and industrial environments due to its robust specifications and compliance with the Automotive Electronics Council (AEC) standard Q100 (Grade 1).
Key Specifications
| Parameter | Description | Min | Typ | Max |
|---|---|---|---|---|
| Supply Voltage (VCC) | Operating voltage range | 2.0 V | - | 5.5 V |
| Operating Temperature | Range of operating temperatures | -40 °C | - | +125 °C |
| Input Voltage (VIH) | High-level input voltage at VCC = 5.5 V | 3.85 V | - | - |
| Input Voltage (VIL) | Low-level input voltage at VCC = 5.5 V | - | - | 1.65 V |
| Propagation Delay (tpd) | At VCC = 3.0 V to 3.6 V, CL = 15 pF | 4.4 ns | - | 7.9 ns |
| Output Voltage (VOH) | High-level output voltage at IO = -8.0 mA | 3.94 V | - | - |
| ESD Protection | MIL-STD-883, method 3015 | - | - | 2000 V |

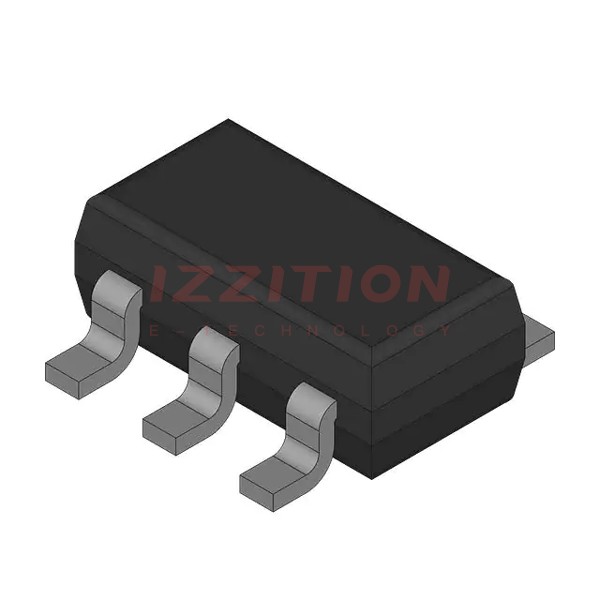

| Package Type | SC-74A, plastic surface-mounted package; 5 leads | - | - | - |
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance and balanced propagation delays
- ESD protection: MIL-STD-883, method 3015 exceeds 2000 V, HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V
Applications
The 74AHC1G32GV-Q100125 is suitable for various applications, including:
- Automotive systems due to its AEC-Q100 qualification
- Industrial control systems requiring robust and reliable logic gates
- Mixed voltage environments where overvoltage tolerant inputs are necessary
- Low power consumption applications benefiting from CMOS technology
Q & A
- What is the primary function of the 74AHC1G32GV-Q100125?
The primary function is to act as a single 2-input OR gate.
- What is the operating temperature range of this component?
The operating temperature range is from -40 °C to +125 °C.
- What is the supply voltage range for this component?
The supply voltage range is from 2.0 V to 5.5 V.
- Is the 74AHC1G32GV-Q100125 suitable for automotive applications?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1).
- What type of package does the 74AHC1G32GV-Q100125 come in?
It comes in a SC-74A, plastic surface-mounted package with 5 leads.
- Does the component have ESD protection?
Yes, it has ESD protection exceeding 2000 V according to MIL-STD-883, method 3015.
- What is the propagation delay of the 74AHC1G32GV-Q100125?
The propagation delay is approximately 4.4 ns to 7.9 ns at VCC = 3.0 V to 3.6 V and CL = 15 pF.
- Is the component RoHS compliant?
Yes, the component is RoHS compliant.
- What are the input levels for the 74AHC1G32GV-Q100125?
The input levels are CMOS compatible, with high-level input voltage at 3.85 V and low-level input voltage at 1.65 V at VCC = 5.5 V.
- Does the component have latch-up protection?
Yes, the latch-up performance exceeds 100 mA per JESD 78 Class II Level A.
