Overview
The 74AHC00D/C118, produced by NXP USA Inc., is a quad 2-input NAND gate integrated circuit. This component is part of the AHC (Advanced High-speed CMOS) logic family, known for its high speed, low power consumption, and robust performance. The 74AHC00D/C118 is designed to operate in a wide supply voltage range from 2.0 V to 5.5 V, making it versatile for various applications. It features CMOS input levels, balanced propagation delays, and Schmitt-trigger actions on all inputs, which enhance noise immunity and stability.
Key Specifications
| Attribute | Value |
|---|---|
| Type Number | 74AHC00D |
| Supply Voltage (VCC) | 2.0 - 5.5 V |
| Input Logic Levels | CMOS |
| Output Drive Capability | ± 8 mA |
| Propagation Delay (tpd) | 3.2 ns |
| Maximum Frequency (fmax) | 60 MHz |
| Number of Bits | 4 |
| Operating Temperature (Tamb) | -40°C to +125°C |

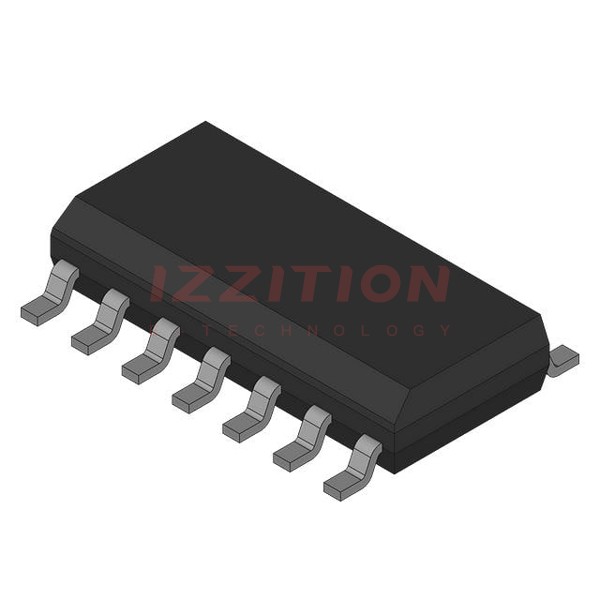

| Package | SO14 (SOT108-1) |
| Mounting Type | Surface Mount |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Wide supply voltage range from 2.0 V to 5.5 V
- CMOS input levels with Schmitt-trigger actions for improved noise immunity
- Overvoltage tolerant inputs up to 5.5 V, making it suitable for mixed voltage environments
- Low power dissipation and high noise immunity
- Balanced propagation delays for consistent performance
- ESD protection: HBM exceeds 2000 V and CDM exceeds 1000 V
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
Applications
The 74AHC00D/C118 is suitable for a variety of applications where high-speed, low-power logic operations are required. These include:
- Digital signal processing and logic circuits
- Mixed voltage environment applications where input voltage levels may vary
- High-reliability systems requiring robust ESD protection and latch-up performance
- Automotive, industrial, and consumer electronics where wide operating temperature ranges are necessary
Q & A
- What is the supply voltage range of the 74AHC00D/C118?
The supply voltage range is from 2.0 V to 5.5 V. - What type of input logic levels does the 74AHC00D/C118 have?
The 74AHC00D/C118 has CMOS input levels. - What is the propagation delay of the 74AHC00D/C118?
The propagation delay is approximately 3.2 ns. - Is the 74AHC00D/C118 ESD protected?
Yes, it has ESD protection: HBM exceeds 2000 V and CDM exceeds 1000 V. - What is the operating temperature range of the 74AHC00D/C118?
The operating temperature range is from -40°C to +125°C. - What package options are available for the 74AHC00D/C118?
The component is available in the SO14 (SOT108-1) package. - Does the 74AHC00D/C118 have Schmitt-trigger actions on its inputs?
Yes, all inputs have Schmitt-trigger actions. - Is the 74AHC00D/C118 suitable for mixed voltage environments?
Yes, it has overvoltage tolerant inputs up to 5.5 V. - What is the maximum frequency of operation for the 74AHC00D/C118?
The maximum frequency of operation is 60 MHz. - What is the output drive capability of the 74AHC00D/C118?
The output drive capability is ± 8 mA.
