Overview

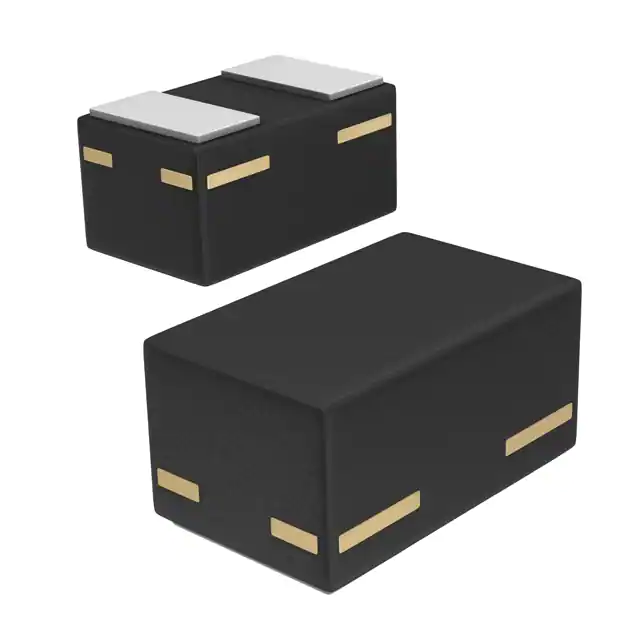

The PZU6.2B2L,315 is a Zener diode produced by Nexperia USA Inc. This component is designed for various voltage regulation and protection applications. It operates within a specific voltage range and is packaged in a compact DFN1006-2 surface mount format, making it suitable for modern electronic designs that require efficient and reliable voltage control.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (V_Z) | 6.2 V ±2% |
| Power Dissipation (P_D) | 250 mW |
| Maximum Reverse Leakage Current (I_R) | 500 nA |
| Package Type | DFN1006-2 |
| Pins | 2 |
| Operating Temperature Range | -55°C to 150°C |
| Compliance | Lead-free, Halogen-free, RoHS compliant |
Key Features
- Compact DFN1006-2 surface mount package for space-efficient designs.
- Low power dissipation of 250 mW, suitable for low-power applications.
- Precision voltage regulation with a ±2% tolerance.
- Low maximum reverse leakage current of 500 nA.
- Lead-free and halogen-free, complying with RoHS standards.
Applications
The PZU6.2B2L,315 Zener diode is versatile and can be used in various applications, including:
- Overvoltage protection to safeguard electronic circuits from voltage spikes.
- General voltage regulation to maintain stable voltage levels.
- Voltage reference functions where a precise voltage is required.
- Automotive and industrial electronics where reliability and precision are crucial.
Q & A
- What is the voltage rating of the PZU6.2B2L,315 Zener diode?
The voltage rating is 6.2 V with a ±2% tolerance. - What is the power dissipation of the PZU6.2B2L,315?
The power dissipation is 250 mW. - What is the package type of the PZU6.2B2L,315?
The package type is DFN1006-2. - Is the PZU6.2B2L,315 RoHS compliant?
Yes, it is RoHS compliant, lead-free, and halogen-free. - What is the maximum reverse leakage current of the PZU6.2B2L,315?
The maximum reverse leakage current is 500 nA. - What are some common applications of the PZU6.2B2L,315?
Common applications include overvoltage protection, general voltage regulation, and voltage reference functions. - What is the operating temperature range of the PZU6.2B2L,315?
The operating temperature range is -55°C to 150°C. - How many pins does the PZU6.2B2L,315 have?
The PZU6.2B2L,315 has 2 pins. - Is the PZU6.2B2L,315 suitable for automotive applications?
Yes, it is suitable for automotive and industrial electronics. - Where can I find detailed specifications for the PZU6.2B2L,315?
Detailed specifications can be found on the Nexperia website, as well as on distributor websites like Digi-Key and Mouser.
