Overview
The PZU5.1B1A,115 is a Zener diode produced by Nexperia USA Inc. This component is designed to provide voltage regulation and protection in various electronic circuits. With its robust specifications and compact packaging, it is suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - Zener (Nom) (Vz) | 5.1 V |
| Tolerance | ±2% |
| Power - Max | 320 mW |
| Impedance (Max) (Zzt) | 60 Ohms |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +150°C |
| Configuration | Single |

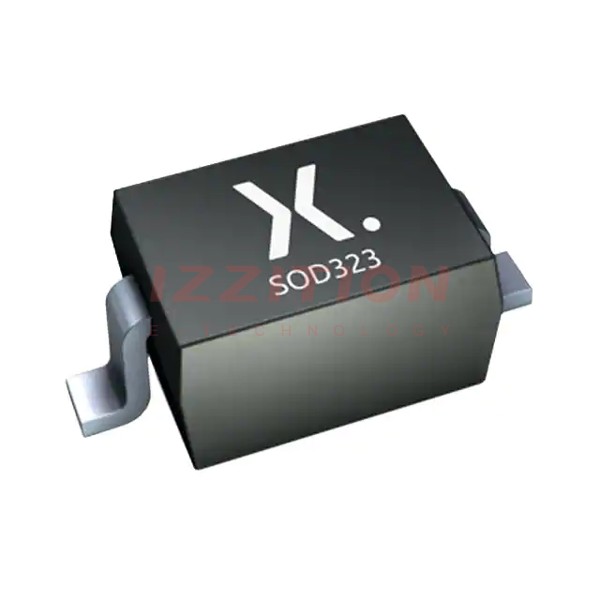

| Package | SOD323 |
Key Features
- Compact SOD323 package for space-efficient designs.
- Low impedance of 60 Ohms for effective voltage regulation.
- High temperature range from -55°C to +150°C, making it suitable for harsh environments.
- ±2% tolerance for precise voltage regulation.
- Maximum power dissipation of 320 mW.
Applications
The PZU5.1B1A,115 Zener diode is versatile and can be used in various applications, including:
- Automotive systems for voltage regulation and protection.
- Industrial control systems to stabilize voltages.
- Consumer electronics for overvoltage protection and voltage regulation.
- Power supplies and DC-DC converters.
Q & A
- What is the nominal Zener voltage of the PZU5.1B1A,115?
The nominal Zener voltage is 5.1 V. - What is the tolerance of the Zener voltage?
The tolerance is ±2%. - What is the maximum power dissipation of the PZU5.1B1A,115?
The maximum power dissipation is 320 mW. - What is the impedance of the PZU5.1B1A,115?
The impedance is 60 Ohms. - What is the operating temperature range of the PZU5.1B1A,115?
The operating temperature range is from -55°C to +150°C. - In what package is the PZU5.1B1A,115 available?
The component is available in the SOD323 package. - Is the PZU5.1B1A,115 suitable for automotive applications?
Yes, it is suitable for automotive applications due to its robust specifications and temperature range. - Can the PZU5.1B1A,115 be used in industrial control systems?
Yes, it can be used in industrial control systems for voltage regulation and protection. - What are some common uses of the PZU5.1B1A,115 in consumer electronics?
It is commonly used for overvoltage protection and voltage regulation in consumer electronics. - Is the PZU5.1B1A,115 RoHS compliant?
Yes, the component is RoHS compliant.
