Overview

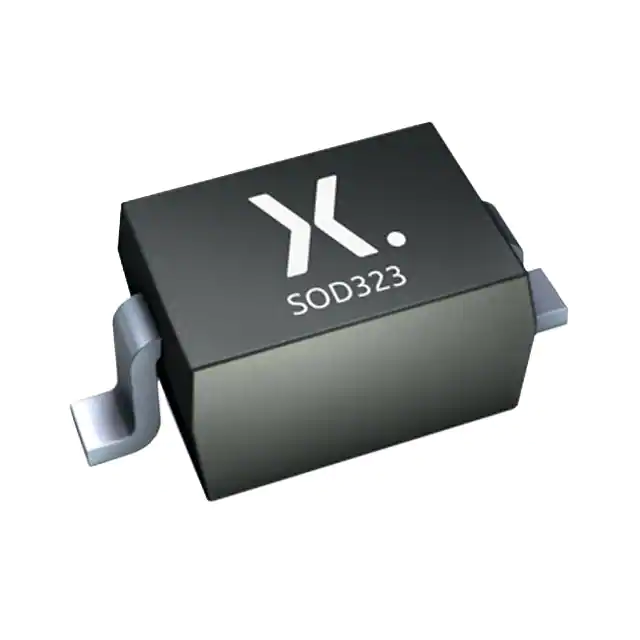

The PZU10B2A,115 is a Zener diode produced by Nexperia USA Inc. This component is designed to provide voltage regulation and protection in various electronic circuits. It is part of Nexperia's extensive range of discrete semiconductor products, known for their reliability and performance.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (V_Z) | 10 V |
| Power Dissipation (P_tot) | 320 mW |
| Tolerance | ±2% |
| Package Type | SOD-323 (Surface Mount) |
| Operating Temperature Range | -65°C to 150°C |
Key Features
- Low profile SOD-323 package for space-saving designs.
- High power dissipation capability of 320 mW.
- Precision voltage regulation with ±2% tolerance.
- Wide operating temperature range from -65°C to 150°C.
- Suitable for various voltage regulation and protection applications.
Applications
The PZU10B2A,115 Zener diode is versatile and can be used in a variety of applications, including voltage regulation, overvoltage protection, and signal clipping in electronic circuits. It is particularly useful in power supplies, audio equipment, and other electronic devices where stable voltage regulation is crucial.
Q & A
- What is the voltage rating of the PZU10B2A,115 Zener diode?
The voltage rating of the PZU10B2A,115 is 10 V. - What is the power dissipation capacity of this diode?
The power dissipation capacity is 320 mW. - What is the tolerance of the PZU10B2A,115 Zener diode?
The tolerance is ±2%. - What package type does the PZU10B2A,115 come in?
The package type is SOD-323 (Surface Mount). - What is the operating temperature range of this diode?
The operating temperature range is from -65°C to 150°C. - Where can I find the datasheet for the PZU10B2A,115?
You can find the datasheet on the official Nexperia website or through distributors like Digi-Key, Mouser, and Avaq Semiconductor. - What are some common applications for the PZU10B2A,115 Zener diode?
Common applications include voltage regulation, overvoltage protection, and signal clipping in electronic circuits. - Is the PZU10B2A,115 suitable for high-power applications?
No, it is not suitable for high-power applications due to its limited power dissipation capacity of 320 mW. - Can I use the PZU10B2A,115 in audio equipment?
Yes, it is suitable for use in audio equipment where stable voltage regulation is required. - How do I ensure the correct installation of the PZU10B2A,115?
Ensure correct installation by following the pinout and mounting instructions provided in the datasheet.
