Overview

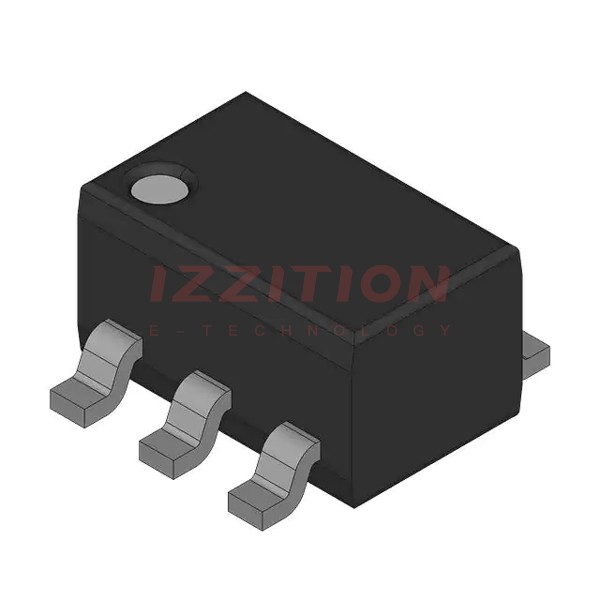

The PUMD3-QX, produced by Nexperia USA Inc., is a compact and efficient NPN/PNP Resistor-Equipped Double Transistor (RET) housed in a small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. This component is designed to offer high performance and reliability in a miniature form factor, making it ideal for space-constrained applications where size and efficiency are key requirements.
Key Specifications
| Type number | Package version | Package name | Size (mm) |
|---|---|---|---|
| PUMD3-Q | SOT363 | TSSOP-6 | 2.1 x 1.25 x 0.95 |
| Channel type | Ptot (mW) | IC [max] (mA) | VCEO (V) |
| NPN/PNP | 300 | 100 | 50 |
| R1 (typ) (kΩ) | R2 (typ) (kΩ) | Packing | Orderable part number |
| 10 | 10 | SOT363_115 | PUMD3-QX |
Key Features
- Better thermal management
- Increased safety margin
- Simplified testing process
Applications
The PUMD3-QX is suitable for various applications, including:
- Smart switching capabilities
- Industrial-grade performance
- Innovative designs where space and efficiency are critical
Q & A
- What is the package type of the PUMD3-QX? The PUMD3-QX is housed in a SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.
- What are the key features of the PUMD3-QX? The key features include better thermal management, increased safety margin, and a simplified testing process.
- What are the typical applications of the PUMD3-QX? It is used in smart switching capabilities, industrial-grade performance, and innovative designs where space and efficiency are critical.
- What is the maximum collector-emitter voltage (VCEO) of the PUMD3-QX? The maximum VCEO is 50V.
- What is the maximum collector current (IC) of the PUMD3-QX? The maximum IC is 100 mA.
- What is the typical value of the base and emitter resistors (R1 and R2)? Both R1 and R2 have a typical value of 10 kΩ.
- Is the PUMD3-QX RoHS compliant? Yes, the PUMD3-QX is RoHS compliant.
- What is the power dissipation (Ptot) of the PUMD3-QX? The power dissipation is 300 mW.
- How is the PUMD3-QX packaged for shipping? The component is carefully packed in anti-static bags to provide ESD anti-static protection, with durable outer packaging and secure closure. Various packaging methods such as Tape and Reel, Cut Tape, Tube, or Tray are supported.
- What certifications does Nexperia adhere to for quality assurance? Nexperia adheres to strict testing protocols and meets industry, legal, regulatory, and ISO 9001:2015 requirements.
