Overview
The PESD5V0U5BV,115 is a high-performance, ultra-low capacitance bidirectional ESD (Electrostatic Discharge) protection array manufactured by Nexperia USA Inc. This component is designed to provide robust protection against ESD surges and transients in sensitive electronic circuits. It is particularly suited for applications requiring low capacitance and high reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Part Number | PESD5V0U5BV,115 |

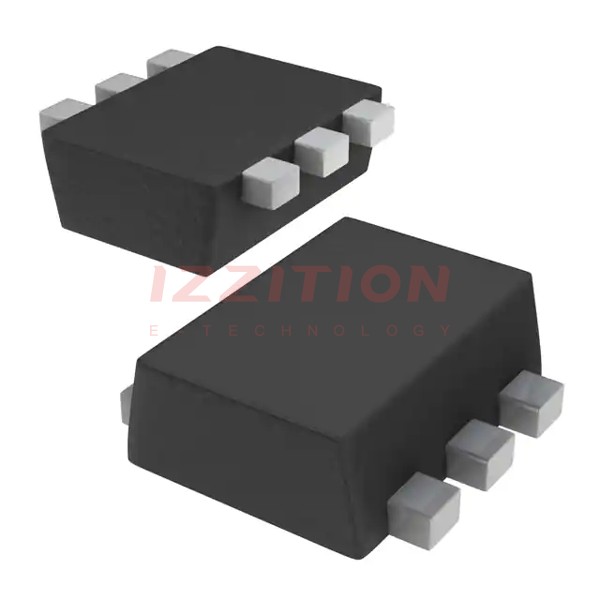

| Package | SOT-563, SOT-666 |
| Voltage - Reverse Standoff (Typ) | 5 V |
| Voltage - Clamping (Max) @ Ipp | 12.5 V |
| Voltage - Breakdown (Min) | 5.8 V |
| Current - Peak Pulse (10/1000µs) | 4.8 A (8/20µs) |
| Capacitance @ Frequency | 11 pF @ 1 MHz |
| Power - Peak Pulse | 45 W |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| ROHS Status | ROHS3 Compliant |
| Lead Free | Yes |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Ultra-low capacitance for minimal impact on signal integrity.
- Bidirectional ESD protection for comprehensive surge protection.
- High peak pulse power capability of 45 W.
- Fast response time to suppress transients and ESD events.
- Compact surface mount packages (SOT-563, SOT-666) for space-constrained designs.
- Automotive-grade quality and reliability, compliant with AEC-Q101 standards.
- Lead-free and ROHS3 compliant.
Applications
- Automotive electronics: Protects sensitive components in automotive systems.
- Industrial controls: Ensures reliability in industrial control systems.
- Telecommunications equipment: Provides ESD protection in telecom devices.
- Consumer electronics: Safeguards electronic components in consumer devices.
Q & A
- What is the primary function of the PESD5V0U5BV,115?
The primary function is to provide ultra-low capacitance bidirectional ESD protection for sensitive electronic circuits.
- What are the typical applications for this component?
It is used in automotive electronics, industrial controls, telecommunications equipment, and consumer electronics.
- What is the maximum reverse standoff voltage of the PESD5V0U5BV,115?
The maximum reverse standoff voltage is 5 V.
- What is the peak pulse power capability of this component?
The peak pulse power capability is 45 W.
- What is the capacitance of the PESD5V0U5BV,115 at 1 MHz?
The capacitance is 11 pF at 1 MHz.
- Is the PESD5V0U5BV,115 lead-free and ROHS compliant?
Yes, it is lead-free and ROHS3 compliant.
- What are the package options for this component?
The component is available in SOT-563 and SOT-666 packages.
- What is the operating temperature range of the PESD5V0U5BV,115?
The operating temperature range is -55°C to 150°C (TA).
- Is the PESD5V0U5BV,115 suitable for automotive applications?
Yes, it is automotive-grade and compliant with AEC-Q101 standards.
- What is the moisture sensitivity level (MSL) of this component?
The moisture sensitivity level is 1 (Unlimited).
