Overview

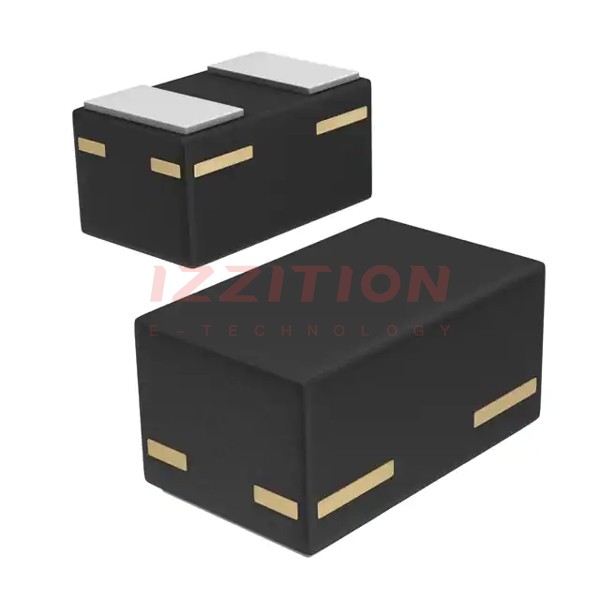

The BZX884-C10,315 is a Zener diode produced by Nexperia USA Inc., designed for various voltage regulation and protection applications. This component is part of the BZX884 series, which offers a wide range of Zener voltages and is available in several package types. The BZX884-C10,315 specifically operates at a Zener voltage of 10V, making it suitable for applications requiring stable voltage reference and overvoltage protection.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Zener Voltage (Vz) | 10 | V |
| Voltage Tolerance | ±5% | % |
| Test Current | 5 | mA |
| Forward Voltage (Vf) | 900 | mV |
| Voltage Temperature Coefficient | 6 | mV/K |
| Power Dissipation | 250 | mW |
| Package Type | DFN1006-2 | |
| Dimensions | 1 x 0.6 x 0.48 | mm |
Key Features
- Wide range of Zener voltages available within the BZX884 series.
- Low power dissipation of 250 mW.
- Surface mount DFN1006-2 package for compact design.
- Stable voltage reference with ±5% voltage tolerance.
- Low forward voltage of 900 mV.
- Voltage temperature coefficient of 6 mV/K.
Applications
The BZX884-C10,315 Zener diode is suitable for various applications including:
- Overvoltage protection to safeguard electronic circuits from voltage spikes.
- General voltage regulation to maintain stable voltage levels.
- Voltage reference functions in analog circuits.
Q & A
- What is the Zener voltage of the BZX884-C10,315?
The Zener voltage of the BZX884-C10,315 is 10V. - What is the voltage tolerance of this Zener diode?
The voltage tolerance is ±5%. - What is the test current for this component?
The test current is 5 mA. - What is the forward voltage (Vf) of the BZX884-C10,315?
The forward voltage is 900 mV. - What is the power dissipation of this Zener diode?
The power dissipation is 250 mW. - In what package type is the BZX884-C10,315 available?
The BZX884-C10,315 is available in a DFN1006-2 surface mount package. - What are the dimensions of the DFN1006-2 package?
The dimensions are 1 x 0.6 x 0.48 mm. - What is the voltage temperature coefficient of this component?
The voltage temperature coefficient is 6 mV/K. - What are some common applications of the BZX884-C10,315?
Common applications include overvoltage protection, general voltage regulation, and voltage reference functions. - Where can I find more detailed specifications and documentation for the BZX884-C10,315?
You can find detailed specifications and documentation on the Nexperia website or through distributors like Mouser, Digi-Key, and TTI.
